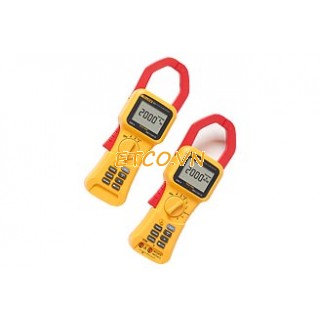

Ampe kìm AC Fluke 355 (True Rms, 2000A)

Ampe kìm AC Fluke 355 (True Rms, 2000A)

Mã SP: Fluke 35

Trạng thái: Còn hàng

Giá: 17.592.120 đ

Điểm nổi bật

SL:

+ Wishlist
| + So sánh

Điện thoại đặt hàng: 04-6687-1848/0982-055-781
Email: sale@etco.vn

Thông tin
Nhận xét
Sản phẩm tham khảo

Ampe kìm AC Fluke 355 (True Rms, 2000A)

THÔNG SỐ KỸ THUẬT:

DCA: 40 A,400 A, 2000 A /1.5 % rdg + 5 digits

ACA: 40 A, 400A, 2000 A /3.5 % + 5 digits

DCV: 4 V, 40 V, 400 V, 600 V, 1000 V /1 % rdg + 5 digits

ACV: 4 V, 40 V, 400 V, 600 V /3 % rdg + 5 digits

Ohms: 400 Ω, 4 kΩ, 40 kΩ, 400 kΩ /1.5% + 5 digits

Continuity beeper: yes

F: 5.0 Hz đến 1 kHz

Nguồn: 6 pin 1.5 V AA

Trọng lượng: 814 kg (1.8 lb)

Vòng kìm: 58 mm (2.28 in)

Kích thước (LxWxD): 300 mm x 98 mm x 52 mm

Phụ kiện: Túi mềm, 6 pin AA, HDSD

Hãng sản xuất: Fluke

Xuất xứ: trung quốc

Bảo hành: 12 tháng

Electrical specifications

Current measurement dc and ac 10 Hz to 100 Hz

Range : 40 A	Resolution: 10 mA Accuracy, A: 1.5 % rdg + 15 digits Trigger Level for Inrush: 0.50 A Trigger Level for Hz Filter OFF: 2.50 A Trigger Level for Hz Filter ON: 0.50 A
Range : 400 A	Resolution: 100 mA Accuracy, A: 1.5 % rdg + 5 digits Trigger Level for Inrush: 5.0 A Trigger Level for Hz Filter OFF: 2.5 A Trigger Level for Hz Filter ON: 2.5 A
Range : 2000 A; 1400 ac rms	Resolution: 1 A Accuracy, A: 1.5 % rdg + 5 digits Trigger Level for Inrush: 5 A Trigger Level for Hz Filter OFF: 8 A Trigger Level for Hz Filter ON: 8 A

Crest Factor (50/60 Hz)

Range : 40 A	Crest Factor* : 2 @ 33 A, 2.4 @ 27 A
Range : 400 A	Crest Factor* : 2 @ 330 A, 2.4 @ 270 A
Range : 2000 A; 1400 ac rms	Crest Factor* : 2 @ 1000 A, 2.4 @ 833 A

Current measurement ac 100.1 Hz to 1 kHz

Range : 40 A	Resolution: 10 mA Accuracy > 10 A : 3.5 % rdg + 15 digits Trigger Level for Inrush: 0.50 A Trigger Level for Hz Filter OFF : 2.50 A Trigger Level for Hz Filter ON : 0.50 A
Range : 400 A	Resolution: 100 mA Accuracy > 10 A : 3.5 % rdg + 5 digits Trigger Level for Inrush: 5.0 A Trigger Level for Hz Filter OFF : 2.5 A Trigger Level for Hz Filter ON : 2.5 A
Range : 2000 A; 1400 ac rms	Resolution: 1 A Accuracy > 10 A : 3.5 % rdg + 5 digits Trigger Level for Inrush: 5 A Trigger Level for Hz Filter OFF : 8 A Trigger Level for Hz Filter ON : 8 A

Voltage measurement (355 only) dc and ac 10 Hz to 100 Hz
(600 V and 1000 V ranges have 10 % over range to 660 V and 1100 V respectively.)

Range : 4 V	Resolution: 1 mV Accuracy: 1 % rdg + 10 digits Trigger Level for Hz Filter OFF: 0.050 V Trigger Level for Hz Filter ON: 0.050 V
Range : 40 V	Resolution: 10 mV Accuracy: 1 % rdg + 5 digits Trigger Level for Hz Filter OFF: 0.25 V Trigger Level for Hz Filter ON: 0.25 V
Range : 400 V	Resolution: 100 mV Accuracy: 1 % rdg + 5 digits Trigger Level for Hz Filter OFF: 6 V Trigger Level for Hz Filter ON: 6 V
Range : 600 V ac rms	Resolution: 1 V Accuracy: 1 % rdg + 5 digits Trigger Level for Hz Filter OFF: 6 V Trigger Level for Hz Filter ON: 6 V
Range : 1000 V dc	Resolution: 1 V Accuracy: 1 % rdg + 5 digits

Voltage measurement (355 only) ac 100.1 Hz to 1 kHz
(600 V and 1000 V ranges have 10 % over range to 660 V and 1100 V respectively.)

Range: 4 V	Resolution: 1 mV Accuracy: 3 % rdg + 10 digits Trigger Level for Hz Filter OFF: 0.050 V Trigger Level for Hz Filter ON: 0.050 V
Range: 40 V	Resolution: 10 mV Accuracy: 3 % rdg + 5 digits Trigger Level for Hz Filter OFF: 0.25 V Trigger Level for Hz Filter ON: 0.25 V
Range: 400 V	Resolution: 100 mV Accuracy: 3 % rdg + 5 digits Trigger Level for Hz Filter OFF: 6 V Trigger Level for Hz Filter ON: 6 V
Range: 600 V ac rms	Resolution: 1 V Accuracy: 3 % rdg + 5 digits Trigger Level for Hz Filter OFF: 6 V Trigger Level for Hz Filter ON: 6 V

Ohms measurement (355 only)

Range: 400 Ω	Resolution: 0.1 Ω Accuracy: 1.5 % + 5 digits
Range: 4 kΩ	Resolution: 1 Ω Accuracy: 1.5 % + 5 digits
Range: 40 kΩ	Resolution: 10 Ω Accuracy: 1.5 % + 5 digits
Range: 400 kΩ	Resolution: 100 Ω Accuracy: 1.5 % + 5 digits

Continuity beeper (355 only)

	On at ≤ 30 Ω
	Off at ≥ 100 Ω

Frequency measurement

Measurement range	5.0 Hz to 1 kHz
Resolution	0.1 Hz (15 Hz to 399.9 Hz); 1 Hz (400 Hz to 1 kHz)
Accuracy – 5.0 Hz to 100 Hz	0.2 % + 2 counts
Accuracy – 100.1 Hz to 1 kHz	0.5 % + 5 counts
Trigger level	Refer to current and voltage tables

*Add 2 % to error spec for CF > 2

General specifications

Batteries

Six 1.5 V AA NEDA 15 A or IEC LR6

Battery life (with typical usage, backlight off)

100 hours

Test leads

Rated to 1000 V

Weight

.814 kg (1.8 lb)

Jaw size

58 mm (2.28 in)

Dimensions (LxWxD)

300 mm x 98 mm x 52 mm (12 in x 3.75 in x 2 in)

Safety rating

IEC 61010-2-032, 600 V CAT IV, 1000 V CAT III

Environmental specifications

Operating temperature

32 °F to + 122 °F (0 °C to +50 °C)

Storage temperature

-4 °F to 140 °F (-20 °C to +60 °C)

Operating humidity

0 to 95 % (non-condensing)

Operating altitude

2000 m

Storage altitude

10,000 m

IP rating

42 (indoor use only)

Drop test requirements

1 m

EMI, RFI, EMC

FCC part 15, IEC/EN 61326-1:1997 class B, IEC/EN 61326:1997 3V/m, performance criteria B, EN61325

Temperature coefficients

Current:	0.1 % of reading per °C outside 22 °C to 24 °C
Voltage:	0.1 % of reading per °C outside 22 °C to 24 °C
