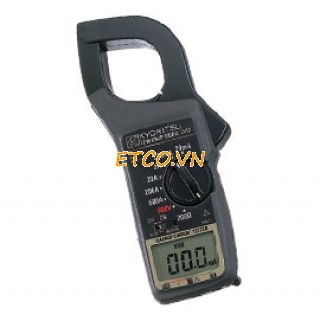

Ampe kìm đo dòng rò Kyoritsu 2412, K2412 (Max 500A)
Thông số kĩ thuật ampe kìm đo dòng rò:
- AC A : 20/200mA/2/20/200/500A (Kìm đo)
- AC A : 20/200mA/2/20/200/500A (Dây đo)
- AC V 600V (Tần số hiệu ứng 40 ~ 400Hz)
- Ω 200Ω
- Đường kính kìm : Ø40mm
- Tần số hưởng ứng : 40~400Hz
- Đầu ra : DC200mV
- Nguồn : 6F22 (9V) × 1 or AC Adaptor
- Kích thước : 209(L) × 96(W) × 45(D)mm
- Khối lượng thiết bị đo dòng rò : 450g .
- Phụ kiện ampe kim : Que đo, Hộp, Pin, HDSD
- Bảo hành : 12 tháng
- Hãng sản xuất : Kyoritsu - Nhật
- Xuất xứ : Nhật
- Digital clamp meter with tear drop shaped, medium size transformer jaws specially designed for leakage current measurement.
- Frequency filter switch to eliminate the effect of harmonics.
- Output terminal for connection to recorders and facility to operate from external power supply permit continuous leakage current monitoring.
- Ø40 MAX AC500A Resolution 0.01mA ACV
- Ω OUT PUT Filter
- External Power Supply 2412
| AC A (50/60Hz) |
20/200mA/2/20/200/500A |±1.5%rdg±5dgt (20/200mA/2A) |±2%rdg±5dgt (20/200A) |±2.5%rdg±5dgt (500A) |
||
| AC A (WIDE) |
20/200mA/2/20/200/500A |±1%rdg±3dgt [50/60Hz], |±5%rdg±5dgt [40~400Hz] (20/200mA/2A) |±1.5%rdg±3dgt [50/60Hz], |±5%rdg±5dgt [40~400Hz] (20/200A) |±2%rdg±3dgt [50/60Hz], |±5%rdg±5dgt [40~400Hz] (500A) |
||
| AC V | 600V |±2%rdg±5dgt (50/60Hz) |±5%rdg±5dgt (40~400Hz) |
||
| Ω | 200Ω|±1.5%rdg±5dgt | ||
| Conductor Size | Ø40mm max. | ||
| Effect of External Stray Magnetic Field Ø15mm 100A |
10mA AC max. | ||
| Frequency Response | 40~400Hz | ||
| Output |
|
||
| Withstand Voltage | 3700V AC for 1 minute | ||
| Power Source | 6F22 (9V) × 1 or AC Adaptor | ||
| Dimensions | 209(L) × 96(W) × 45(D)mm | ||
| Weight | 450g approx. | ||
| Accessories | 7066A (Test leads) 9072 (Carrying case) 8025 (Plug for output jack) 6F22 × 1 Instruction Manual |
||
| Optional | 8008 (Multi-Tran)* 8022 (AC adaptor) (110V) 8023 (AC adaptor) (220V) 7014 (Output cord) |
* This Multi-Tran can not be used for leakage current measurement.
