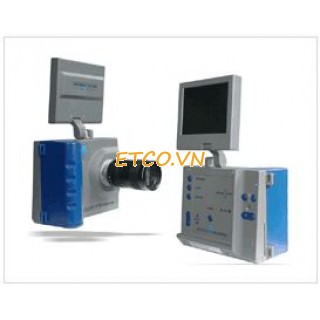

Camera kỹ thuật số tốc độ cao
Xuất xứ: Korea
Bảo hành: 12 tháng
Features
-A high-speed digital video or a camera photographs the scene of blasting and visually analyzes environmental damage, such as
1) the extent of rock-crushing,
2) track and speed,
3) proper delay time difference and percussion arrangement,
4) the performance of gunpowder, and
5) the spread of dust.
Specification
| RECORDING TIME and FRAME STORAGE | |||
| Camera Models (M=monochrome) (C=colour) |
Recording Rate (Frames per Second) |
Recording Time with Standard memory of 2.184 Full Frames (640x480 pixels) | Recording Time with Enhanced Memory of 4.368 Full Frames (640x480 pixels) |
| 250M & 250C | 25 | 87.20 seconds | 174.40 seconds |
| 30 | 72.66 seconds | 145.32 seconds | |
| 50 | 43.60 seconds | 87.20 seconds | |
| 60 | 36.33 seconds | 72.66 seconds | |
| 125 | 17.44 seconds | 34.88 seconds | |
| 250 | 8.72 seconds | 17.44 seconds | |
| 500M & 500C | 500 | 4.36 seconds | 8.72 seconds |
| 1000M & 1000C | 1,000 | 2.18 seconds | 4.36 seconds |
| Resolution | 640x480 pixels CMOS array, 8 bit monochrome or 24 bit color models are available. For a higher resolution Blaster's TroubleShooter TV camera with 1280x1024 pixels see the Blaster's TroubleShooter-HR Brochure. |
| Trigger | Flexible trigger options allows the operator to create the penfect Pre and Post event trigger setting s for capturing images of the blast. Trigger activation is selectable by the operator. |
| Lens Mount | Standard C-mount. |
| Power | 4 internal D-cell batteries or 6 VDC from extermal Batlery or 120/220 AC mains power from supplied adapter. |
| Field Settings | The LCD colour display on the TroubleShooter TM has an on-screen menu. The menu alllows the operator to make all camera settings in the field including : selection of play and live modes, trigger mode, recording rate; display size; shutter speed; play forward; play reverse; play speed; play frame by frame in step mode. |
| Components | TroubleShooter TM with standard memory, CD-ROM containing the TroubleShooter TM Operation Guide and MationMeasure software for video downloading and playback, 110-220 AC power adapter(power cord not included), C-mount lens adapter, built-in 127 mm (5in) LCD color display, USB-2port for digital image transfe, CompactFlash port for on-board non-volatile memory (CompactFlash card not provided), Trigger, Pulse in, Pulse Out, IRIG, DB Power In. |
| Size & Weight | TroubleShooter TM 152x127x102mm (6x5x4xin) 1.0kg (2.2 Ibs) |
| PC Connection | USB-2 for downloading avi digital video from the camera for storage on the computer's hard drive andior or use CompactFlash card. |
| Warranty | 1 year Comprehensive Warrnaty. |
