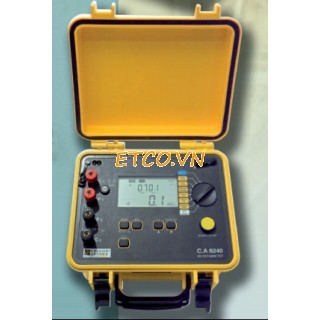

Cầu đo điện trở một chiều C.A 6240
Độ phân giải tối ưu 1μΩ của C.A 6240
Chắc chắn và chống thấm nước, C.A 6240: sản phẩm hàng đầu được thiết kế dùng cho các ngành sản xuất công nghiệp hoặc phòng thí nghiệm.
- Thiết bị an toàn, nhẹ và chắc chắn.
- Màn hình LCD rộng có 2 dòng số điện tử dễ đọc.
- C.A 6240 có các chỉ thị tạo thuận lợi cho việc thực hiện và giải thích các phép đo.
- Kiểu đo tự động cho phép đo không cần ấn nút.
- Máy còn có chế độ lưu tự động.
- Đo với phương pháp 4 dây
- Dòng thử đến 10A, đảo chiều dòng đo
Các đặc tính kỹ thuật của C.A 6240
- Tự động tắt nguồn
- Nguồn cung cấp: acquy NiMH sạc
- Bảo vệ cấp IP53
- An toàn điện IEC 61010-1 CAT III 50 V
- Kích thước 273x247x280 mm
- Nặng 5kg
Thông số kỹ thuật:
Wide measurement range and excellent accuracy due to:
–the 4-wire measurement method
–current reversal
– test current up to 10 A
Very easy to use
Automatic measurement mode
Automatic "on the fly" or manual recording mode
Possibility of measurements on inductive components
Measurement prohibited in the presence of a disturbance voltage
Protection against accidental overloads up to 500 V
Large backlit LCD display
APPLICATIONS:
The C.A. 6240 allows quick detection of any deterioration between 2 contact points. This means it can be used for a very broad range of applications:
• Contact resistance of switches and circuit breakers
• Earth continuity
• Quality of weld spots
• Surface condition and metallizing
• Graphite electrode…
The C.A. 6240 micro-ohmmeter provides reliable, accurate measurements due to its test current of up to 10 A. This accuracy is ensured through:
• use of the 4-wire method which eliminates the effects of the leads' resistances and the contact resistances.
• the possibility of reversing the polarity of the measurement current, thus eliminating the effects of possible interference voltages.
Measurement Range Resolution Accuracy Measurement current No-load voltage
5 to 3,999 mΩ 1 µΩ ± 0.25% ±2 counts 10A 4 to 6V
4 to 39.99 Ω 10 µΩ ± 0.25% ±2 counts 1A 4 to 6V
40 to 399.9 mΩ 100 µΩ ± 0.25% ±2 counts 1A 4 to 6V
400 to 3,999 mΩ 1 µΩ ± 0.25% ±2 counts 100A 4 to 6V
4 to 399.99 mΩ 10 µΩ ± 0.25% ±2 counts 10mA 4 to 6V
40 to 3999.9 mΩ 100 µΩ ± 0.25% ±2 counts 10mA 4 to 6V
GENERAL SPECIFICATIONS:
Connection: 4 screw terminals 4mm in diameter
Automatic power-off
Power supply: NiMH rechargeable battery
Dimensions: 273 x 247 x 280 mm
Leakproofing: IP53
Data: optical / USB link
Electrical safety: IEC 61010-1 / CAT III 50V
Weight: 5kg
