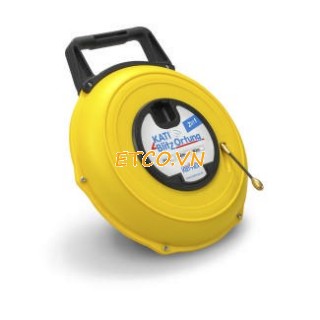

Hệ thống hỗ trợ lắp đặt cáp LTC-Trotec(Germany)
Xuất xứ: Đức
Hãng sản xuất: Trotec
Thông số kỹ thuật:
- Đường kính đẩy dây cáp / đầu của dây thăm dò: 3 mm / 7-10 mm
- Đẩy chiều dài cáp: 20 m
- Phát hiện chiều sâu tối đa: xấp xỉ. 4 m (tùy thuộc vào thành phần của vật liệu che phủ)
- Kích thước: 330 x 260 x 80 mm
- Trọng lượng: 1,14 kg
- Chiều dài và đường kính có thể được đặt hàng theo yêu cầu
LTC3020 Route Locating System
Caution! This product only on request!
LTC3020 Route Locating System 20m
LTC3020 Route Locating System 20m - Ansicht 1 LTC3020 Route Locating System 20m - Ansicht 2 LTC3020 Route Locating System 20m - Ansicht 3
The new LTC route locating systems are almost identical in their technical data. They only differ in their push cable lenght.
The LTC 3020 with 3mm thin push cable and the 7-10mm in diameter measured probe head is ideally suited for tracking routes or locate pipe blockages in indoor installations.
Even in places where other pull tools have failed, the LTC system surmounts angular routes without problems, even in pipe systems with cables and over long distances.
Very stable pushing with small bending radii
The push cable profile of the LTC system consists of a special combination of fibreglass cores with integrated copper wires and a polypropylene protective sleeve, which combines the pushing stability of a stiff rod with the flexibility and small bending radius needed from experience.
Thus, the cable can also be hand-fed in complex, laid pipe systems quickly, easily and precisely.
Product features:
- Fibreglass cable with a polypropylene sleeve, integrated copper wires, ø 3.0 mm
- Robust and impact-resistant housing
- Two in one: use for cable laying work and locating routes (cable puller and positioning devices)
- Targeted detection and tracking of empty conduit courses or obstruction
- Locating can be carried out by just one person working alone
- Stable and flexible fibreglass push cable with a small bending radius
- Slip ring for feeding the fibreglass cable even when the transmitter is closed
- Replaceable slip ring (to spool out the strip in a connected status)
- Because there are no moving external parts attached to the LTS housing, no dust or dirt particles can gather here to impair the function or durability.
- The fibreglass cable can be repaired in the event of breakage – it is not necessary to replace the entire coil
- Ideal for electrician, HKS-technicians, restructuring experts
Technical data:
- ø Push cable / head of the probe: 3 mm / 7-10 mm
- Push cable lenght: 20 m
- Maximum detection depth: approx. 4 m (depending on the composition of the covering material)
- Dimensions: 330 x 260 x 80 mm
- Weight: 1.14 kg
- other lenghts and diameters available upon request.
Standard package:
- 1x LTC-coil
- One spring guide headat both ø 7 mm and 10 mm
- Five brass pulling heads with M5 threads and eyelet
- One pulling and pushing tool
- One cable pulling strap with swivel for ø 6-9 mm cables
- Five brass rod ends with M5 threads
- Three brass connection sleeves
- One special fibreglass adhesive for repairing push cable
- Operating instructions
additional accessories available upon request
ATTENTION: The respective location feature, that can transmit and receive at a frequency of 33 kHz, can only be used together with a transmitting and receiving unit which are not included in the scope of delivery (see recommended accessories).
