Kính hiển vi đo lường Brightfield/Darkfield
Xuất xứ: Nhật Bản
Brightfield/Darkfield Measuring Microscopes |
Meiji Techno's MC Series Brightfield/Darkfield Precision Measuring Systems are capable of brightfield, darkfield, and simple polarization observation modes. They are composed of high quality metallurgical microscope components, precision X-Y stages and durable heavy duty stands. Meiji Techno measuring microscopes are available with 2-axis and 3-axis electronic digital readouts in inches and metric. These systems can be configured for use with 35mm photomicrography, analog CCD video, digital CCD video, digital CMOS video andconsumer-grade digital still camera systems. Operators can perform visual inspection and measurement of small items or components without complicated system setup. Mitutoyo Digimatic Micrometer heads have serial output for SPC applications. MC Series Systems are available in 110 or 220 volt, incident or transmitted, binocular or trinocular configurations.
|
|

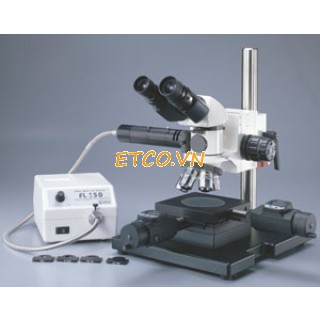

Model MC-60 Our Model MC-60 is a reflective light brightfield/darkfield measuring microscope withbinocular head. Model MC-60T The Model MC-60T, shown at left, is an incident and transmittedlight brightfield/darkfield measuring microscope withbinocular head. The MC-60T can also convert into a reflective light unit simply by moving the light guide from the base into the vertical illuminator tube.
|

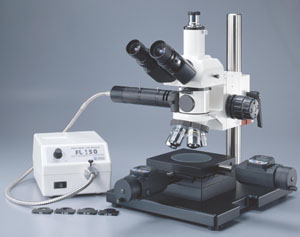

Model MC-70 Our Model MC-70 is a reflective light brightfield/darkfield measuring microscope withtrinocular head. Model MC-70T The Model MC-70T, shown at right, is an incident and transmitted light measuring microscope with trinocular head.The MC-70T can also convert into a reflective light unit simply by moving the light guide from the base into the vertical illuminator tube. |
|
PHOTOMICROGRAPHY Meiji Techno offers a broad range of digital video cameras like theDK1000 2MP CMOS camera, which offers a cost-effective, versatile solution for measuring applications. With the included software, one can preview and capture still shots and video with micrometer overlays to a PC or Mac with USB port. More information available
MC Specifications
|
Cat. No. |
Model |
MC-60 | MC-60T | MC-70 | MC-70T | |
Viewing Head
|
MA815 |
Inverted image binocular head
|
V
|
V
|
|
|
MA816 |
Inverted image trinocular head
|
|
|
V
|
V
|
|
Eyepieces |
MA859CF |
Focusing eyepiece SWH 10X with cross-line reticule and guide pin. High eyepoint eyepiece SWH 10X, FN: 22, accepts optional 25mm diameter reticle
|
V |
V |
V |
V |
Objectives |
MA923 |
Plan Epi BD 5X, N.A. 0.10, W.D. 17.0mm
Plan Epi BD 10X, N.A. 0.25, W.D. 7.48mm Plan Epi BD 20X, N.A. 0.40, W.D. 5.20mm Plan Epi BD 50X, N.A. 0.75, W.D. 0.38mm |
V |
V |
V |
V |
Illuminator | MA993 FL150/12 FL150/115 or FL150/200 |
Vertical Koehler illuminator, focal length 200mm, with sliding rotatable polarizer, infinity tube lens. Filter Set: Blue Clear, Green Clear, Neutral Density ND25, and Polarizing filters in metal mounts. Port to accept FL150/12 flexible 36" (914.4mm) single arm fiber optic light guide. Flexible 36" (914.4mm) single arm fiber light guide for FL150/115.
Light source: 115V, 50-60Hz halogen lamp, 21V 150W. Light source: 230V, 50-60Hz halogen lamp, 21V 150W
|
V
|
V
|
V
|
V
|
Focus Block | FU-3050 |
Coaxial coarse and fine focus block with BF/DF quadruple nosepiece, mounts to 32mm pillar
|
V
|
V
|
V
|
V
|
Stand | MAC-11 |
Heavy Duty stand with pillar and mounting bracket. Diameter of pillar: 38mm, Height: 432mm, Base: 300 x 300 x 25mm
|
V
|
V
|
V
|
V
|
Stage | MA728 |
Reflected light measuring stage: 150mm x 150mm with 50mm x 50mm X-Y movement
|
V
|
|
V
|
|
MA729 |
Transmitted light measuring stage: 150mm x 150mm with 50mm x 50mm X-Y movement with glass stage plate
|
|
V
|
|
V
|
Accessories for MC Series |
|
Catalog Number
|
Description
|
Viewing Heads
|
|
MA815
|
Binocular head - Siedentopf type, I.P. adjustment 53mm to 75mm, graduated diopter on left eyetube (30.0 mm I.D. eyetube). Inclined at 30 degrees.
|
MA816
|
Trinocular head - Siedentopf type, I.P. adjustment 53mm to 75mm, graduated diopter on left eyetube (30.0 mm I.D. eyetube). Inclined at 30 degrees.
|
MA979
|
Trinocular head - Siedentopf type, erect image with sliding 0/100 beamsplitter, inclined at 30 degrees, I.P. adjustment 53mm to 75mm, graduated diopter on left eyetube.
|
Eyepieces
|
|
MA817
|
SWH10X Widefield high eyepoint eyepiece, Field No. 22.0, tube O.D. 30.0 mm (each) (MA817 accepts optional 25mm diameter reticle)
|
MA859CF
|
SWH10X-Focusing eyepiece with reticle mount with cross-line reticle, (Eye-tube O.D. 30.0 mm) (each) (MA859 accepts 25mm diameter reticle)
|
MA906
|
Eyeshield for MA817 SWH 10X eyepiece (each)
|
Illumination
|
|
MA993
|
Vertical Koehler illuminator, with sliding rotatable polarizer, infinity tube lens, focal length 200mm, with clear blue, clear green, and ND 25, neutral density and polarizing filter in metal mounts. Port to accept FL150/12 flexible 36” single flexible bundle light guide.
|
FL150/115
|
Light source: 110/120V, 50/60Hz operation, halogen lamp, 21V 150W, with variable light-intensity regulation, maximum color temperature 3,200° K, with AC fan. (USA)
|
FL150/200
|
Light source: 220/240V, 50/60Hz operation, halogen lamp, 21V 150W, with variable light-intensity regulation, maximum color temperature 3,200° K, with AC fan (Europe)
|
FL150/12
|
Single arm light guide (36” flexible) with special end tip to fit MA993 Vertical Illuminator
|
FL150/12-60
|
Single arm light guide (60” flexible) with special end tip to fit MA993 Vertical Illuminator
|
FL150/70
|
Spare bulb, 21V 150W (EKE) (For FL150/115 or FL150/200)
|
Brightfield/Darkfield Plan Epi Objectives
|
|
MA923
|
Plan Epi Objective BD 5X, N.A. 0.10, W.D. 17.0 mm, F.N. 22
|
MA924
|
Plan Epi Objective BD 10X, N.A. 0.25, W.D. 7.48 mm , F.N. 22
|
MA925
|
Plan Epi Objective BD 20X, N.A. 0.40, W.D. 5.20 mm , F.N. 22
|
MA926
|
Plan Epi Objective BD 50X, N.A. 0.75, W.D. 0.38 mm, F.N. 22
|
MA989
|
Plan Epi Objective BD 100X, N.A. 0.90, W.D. 0.37mm, F.N. 22 (optional)
|
MA686/05
|
Adapter to mount 20.1mm RMS thread objective to BF/DF nosepiece
|
Digimatic Indicators *
|
|
MTI164-164
|
Mitutoyo Digimatic Indicator for X-Y axis movement. Range: 50mm (2"). Resolution: .001mm. (each) (PDF brochure)
|
MTI543-392
|
Mitutoyo Digimatic Indicator (lug back) for Z axis movement. Range: 12.7mm (0.5"). Resolution: .001mm. (each) (PDF brochure)
|
Eyepiece Micrometers
|
|
MA523
|
Cross-line reticle, 25mm diameter
|
MA506
|
10mm divided into 100 units, 25mm diameter
|
MA509
|
5mm divided into 100 units, 25mm diameter
|
MA524
|
10mm square into 400 parts, 0.5mm square, 25mm diameter
|
MA510
|
10mm square into 100 parts, 1.0mm square, 25mm diameter
|
MA542
|
Cross-line with 0.1mm graduations, 25mm diameter
|
MA541
|
Photo framing reticle for SWF10X eyepiece
|
Filters
|
|
MA275/25
|
Blue clear filter, 20.0mm diameter filter, in 30mm metal mount
|
MA275/30
|
Green clear filter, 20.0mm diameter filter, in 30mm metal mount
|
MA275/50
|
N.D. 50 neutral density filter, 20.0mm diameter filter, in 30mm metal mount
|
MA959
|
Polarizing filter, 20mm diameter filter, in 30mm metal mount
|
Stage Micrometers
|
|
MA285
|
Stage micrometer, 1mm divided into 100 units, each unit 0.01mm
|
MA286
|
Stage micrometer, 0.04" divided into 100 units, each unit 0.001 inch
|
MA292
|
Metal stage micrometer, 0.01mm, for reflected light applications
|
Miscellaneous
|
|
MA709
|
Dust cover for MC60 & MC70
|
MA569
|
Replacement glass stage plate for MA729 transmitted light stage
|
* Note: MTI164-164 Digimatic Micrometer heads for X-Y axis movement and MTI543-392 Digimatic Micrometer heads for Z axis movement are sold separately.
|
