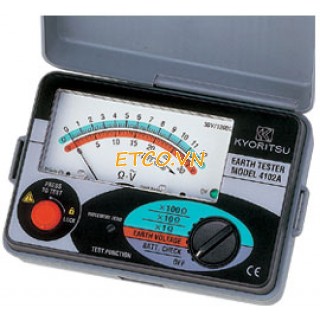

Máy đo điện trở đất KYORITSU 4102AH, K4102Ah (12/120/1200Ω)
Thông số kỹ thuật máy đo điện trở đất:
Vỏ hộp cứng
Giải đo :
- Điện trở đất : 0~12 Ω/0~120 Ω/0~1200 Ω
- Điện áp đất : [50,60Hz]: 0~30V AC
- Độ chính xác :
- Điện trở đất : ±3%
- Điện áp đất : ±3%
Nguồn : R6P (AA) (1.5V) × 6
Kích thước : 105(L) × 158(W) × 70(D)mm
Khối lượng : 600g approx.
Phụ kiện :
- 7095A (Earth resistance test leads) × 1set(red-20m, yellow-10m, green-5m)
- 8032 (Auxiliary earth spikes) × 1set
- 7127A (Simplified measurement probe) × 1set
- R6P (AA) × 6
Bảo hành : 12 tháng
Hãng sản xuất : Kyoritsu - Nhật
Xuất xứ : Thái Lan
- The latest circuit design permits the instrument to operate with the minimum of influence from earth voltage and earth resistance of auxiliary earth spikes.
- Dust and drip proof. (designed to IEC 529 IP54)
- Earth resistance value can be read directly from the scale.
- Designed to meet IEC 61010-1 safety standard.
- Capable of measuring earth voltage.
- Small and lightweight. Shock resistant new case material.
- 2mA measuring current permits earth resistance tests without tripping earth leakage current breakers in the circuit under test.
- Lead wire connection to C and P terminals and proper auxiliary earth resistance can be checked by "OK" lamp. Lead wire connection to C and E terminals is good when "OK" lamp is illuminated. 4102A
CE
4102A Soft Case Model
4102A-H Hard Case Model
4102A Soft Case Model
4102A-H Hard Case Model
Measurement
Ranges Earth Resistance: 0~12 Ω/0~120 Ω/0~1200 Ω
Earth Voltage [50,60Hz]: 0~30V AC
Accuracy Earth Resistance: ±3% of full scale
Earth Voltage: ±3% of full scale
Overload Protection Earth Resistance: 276V AC for 10 seconds
across 2 of the 3 terminals
Earth Voltage: 276V AC for 1 minute
Safety Standard IEC 61010-1 CAT.III 300V Pollution Degree 2, IEC 61557
Applicable Standards IEC 60529 IP54
Withstand Voltage 3700V AC for 1 minute
Power Source R6P (AA) (1.5V) × 6
Dimensions 105(L) × 158(W) × 70(D)mm
Weight 600g approx.
Accessories 7095A (Earth resistance test leads) × 1set
(red-20m, yellow-10m, green-5m)
8032 (Auxiliary earth spikes) × 1set
7127A (Simplified measurement probe) × 1set
R6P (AA) × 6
Neck strap
Instruction Manual
Carrying Case : 9084 (Soft case)
: 9164 (Hard case)
Optional
7100 (Precision measurement cord set)
