Máy nổ mìn nối tiếp Kobla SQB-10 (SEQUENTIAL BLASTING MACHINE SQB-10)
Hãng sản xuất: Kobla
Xuất xứ: Hàn Quốc
Bảo hành: 12 tháng
Thông số kỹ thuật: Máy nổ mìn nối tiếp Kobla SQB-10 (SEQUENTIAL BLASTING MACHINE SQB-10)

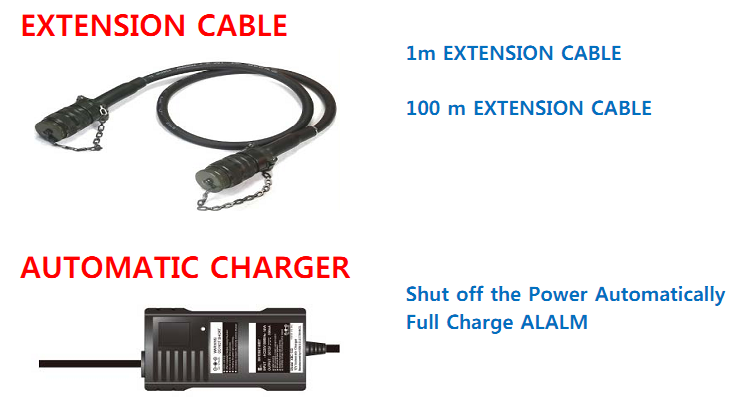

KOBLA Sequential Blasting Machine SQB-10 including Ohm meter XR-10, Terminal board B-10, 1m Cable, Digital charger

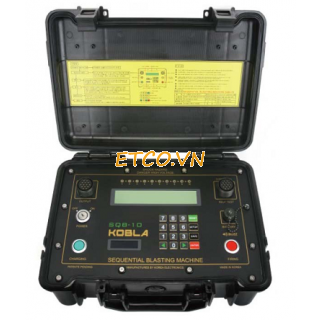

SEQUENTIAL BLASTING MACHINE SQB 10
Description
Full Digital Micom Circuit
Delayed Time-Setting : Keypad System
Delayed Time-Setting each Circuit is displayed on the LCD.
Operational State appear in the LCD and OLED.
Set the Delayed Time from 0 to 9999 Ms
Extremely Sensitive Sensing Circuit
Detect the Wire Disconnection during the Blast AND Stop the Blast
Have enough spare capacity, Large-Capacity
Lightness, Solidity, Dustproof & Waterproof case for IP65
Large Ni_MH Battery is on board, Fast Chargingg_ y , gg
Self Checking Circuit, Fault Inspection of Extension Cable

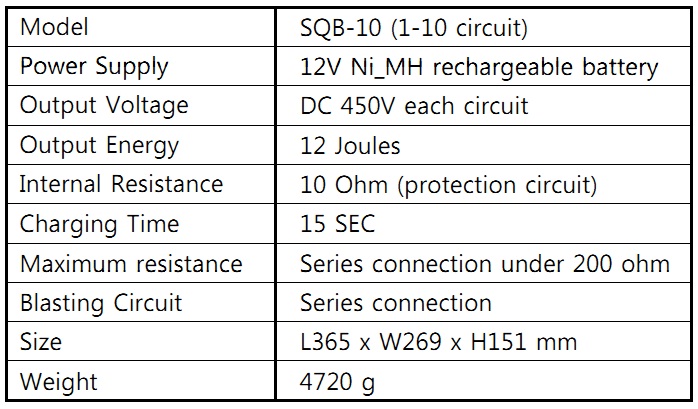

Specifications
SEQUENTIAL BLASTING MACHINEOHM METER XR-10
Description
Lightness, Solidity, Dustproof & Waterproof case for IP67
Use the Rotary SW from 1 to 10 circuit
Precisely Measure the Resistance each Circuit: Precisely Measure the Resistance each Circuit
SINGLE CIRCUIT Measurement
High-Powered Ni_MH Battery
Use the Charger of SQB-10
Charging Time : In An Hour
Charging at once per 6 months

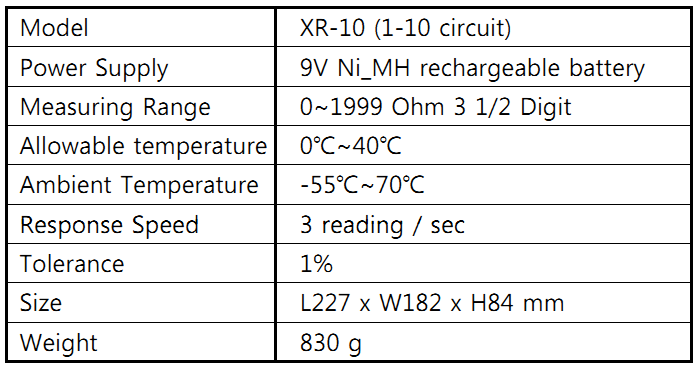

Specifications

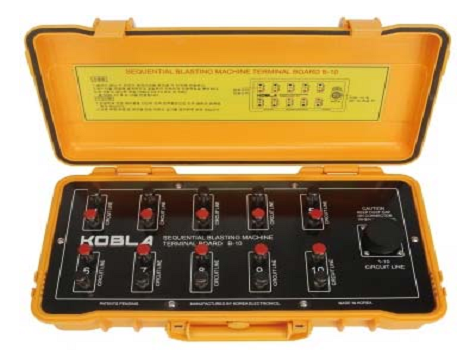

TERMINAL BOARD B-10
Description
Lightness, Solidity, Dustproof & Waterproof case Push type Terminal
Convenient Connection of Leading Wireg
Size: L360 x W200 x H80 mm
Weight 1170 g

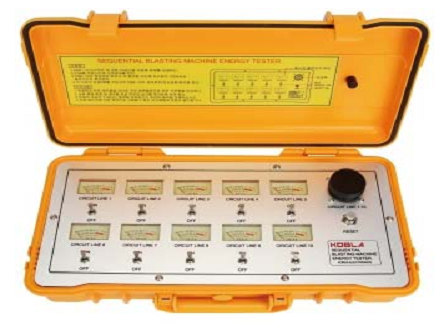

ENERGY TESTER
Measure the Ouoput Energy & Wire Disconnection Detectability Searching the Malfunction
Prevention of Misfire: Prevention of Misfire
Size: L360 x W200 x H80 mm
SEQUENTIAL BLASTING MACHINE SYSTEM
