Máy phát hiện rò rỉ khí nén siêu âm E04-003
Hang sản xuất: Gain
Model: E04-003
Thông số kỹ thuật: Thiết bị phát hiện rò rỉ khí nén siêu âm E04-003
Bộ thu:
+ Cảnh báo: Đèn LED sáng và tiếng tích tắc
+ Độ nhạy tần số: 40kHz ±2kHz
+ Nhiệt độ hoạt động: 0°C~40°C
+ Độ ẩm: <80%
+ Nguồn cấp: 9V,6F22 or tương đương
+ Kích thước: 92 x 50 x 30mm
+Khối lượng: 115g
Bộ phát:
+ Cảnh báo: đèn LED sáng
+ Nhiệt độ hoạt động: 0°C~40°C
+ Độ ẩm: <80%
+ Tần số phát: 40kHz
+ Nguồn cấp: 9V,6F22 or tương đương
+ Kích thước: 101 x 59 x 28mm
+ Khối lượng: 90g

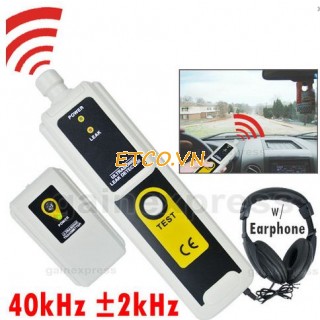

E04-003 Ultrasonic Leak detector & Transmitter
This Ultrasonic Leak detector is design to locate leaks in pressure and vaccum systems. It can be used to detect and locate the source of ultrasonic emission generated by gas or liquid flowing through a small restrictive opening. It uses the advanced ultrasonic sensing technique and features small size,light weight,reliable detection,easy use and utility. In conjuction with Ultrasonic Transmitter,can also be used for tightness check in sealed compartments such as container, tank, car, etc.
Features:
Design to locate leaks in pressure and vaccum systems
Locate leaks pressure and vaccum systems
Quick location of air, water, dust leaks
Place the transmitter in the vehicle and close the doors and windows
Trace the detector around outside of the screen, windows and door seals to locate the leak
2 LED lights
o Red : Leak
o Green : Power
Comes with earphone and carrying bag
Specifications:
Receiver
o Alarm Indication : The "LEAK" LED lights and the "ticking tone" increases in
frequency
o Frequency Response : 40kHz ±2kHz
o Operating Condition:
Temperature : 0°C~40°C
Relative humidity : <80%
o Battery : 9V,6F22 or equivalent
o Size : 192 x 50 x 30mm
o Weight : about 115g (including battery)
Transmitter
o Indicator : LED
o Operating Condition :
Temperature : 0°C ~ 40°C
Relative humidity : <80%
o Output Frequency : 40kHz
o Battery : 9V,6F22 or equivalent
o Low battery Indication : "POWER"LED can't light
o Size : 101 x 59 x 28mm
o Weight : about 90g (including battery)
Set includes:
1 x Receiver
1 x Transmitter
2 x 9V Battery (FREE)
1 x Earphone
1 x English Instruction Manual
1 x Carrying bag
Standard Packaging Box
