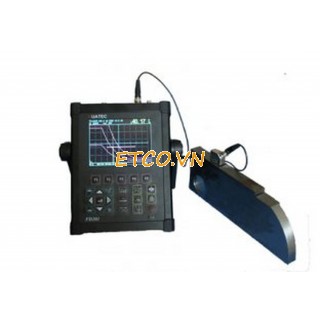

Máy siêu âm khuyết tật HUATEC FD201
THÔNG SỐ KỸ THUẬT:
|
Title |
Parameter |
Title |
Parameter |
|
Measuring Range(mm) |
2.5 ～ 10000 |
Measurement Mode |
Single, Dual, Thru |
|
Vertical Linearity Error |
≤3% |
Reject |
0~80% |
|
Horizontal Linearity Error |
≤0.1% |
Pulse Displacement(μs) |
-20 ～ +3400 |
|
Sensitivity Leavings |
60dB |
Zero(μs) |
0.0 ～ 99.99 |
|
Pulse Displacement |
32dB |
Port Type |
BNC |
|
Resolving Power |
≥40 |
Operating Temperature (℃) |
-20～50 |
|
Frequency Range(MHz) |
0.5 ～ 20 |
H×W×D(mm) |
240×180×50 |
|
Gain(dB) |
0 ～ 110 |
Weight(kg) |
1.8 |
|
Material Velocity(m/s) |
1000 ～ 9999 |
|
|
Standard Delivery:
Digital Ultrasonic Flaw Detector Main unit
2.5MHZ-ф20 straight probe
4MHZ-8x9mm, 60degree angle probe
4A/9Vpower adapter
Probe connection cable (BNC to Lemo 00)
Probe connection cable (BNC to Lemo 01)
Instruction manual
Carrying case
Hãng sản xuất: HUATEC
Xuất xứ: Trung quốc
Bảo hành: 12 tháng
