Thiết bị kiểm tra và chuẩn đoán lỗi của bo mạch

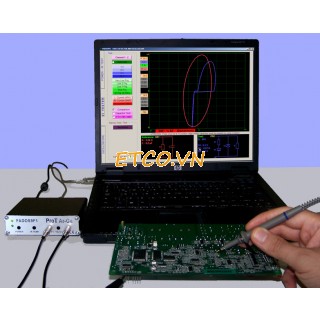

FADOS9F1 Circuit Board Tester for Electronic
FADOS9F1 was added 2 unique features. First feature is integrated DC power source. It can be adjusted between 0-16V and 20-1500mA with power output; DC voltage/current graph of electronic cards power is created. Second unique feature is IR (infrared) non-touched temperature sensor for detecting more heated components. Using together 2 new features, it is possible to some of detecting failures to decreasing during 5-10 times. These features can be used as new technique fault detection.
In this technique, power cable is connected the input of solid card and set maximum voltage. Click “Power Test” button; software creates 100 mV steps DC voltage-current graph from 0 to Vmax. and saves a file.After waiting a few minutes, it will be easy to detect more heated components and draw out heat map of electronic card.
For testing faulty cards; solid electronic graph opens. Maximum current is determined and after click ‘Power Test’ button, created faulty card’s supply graph. If more current is suffering from faulty card with IR Sensorby controlling the temperature of the components that more heated components are determined in a short time. If the faulty card is less current, in this case supply line is open circuit likely. In this case, open oscilloscope screen and find line which does not get energy and broken-line is easily detected. If the faultycard and solid card has same graphs; in this case opens VI tester screen and finds faulty with it.
FADOS9F1 is uses for microvolt measurement and also to for adding multiplexer module, it has an output port. FADOS9F1 is designed multi-functional products for thinking any condition the needs of users. FADOS9F1 includes 5 – 6 different p
