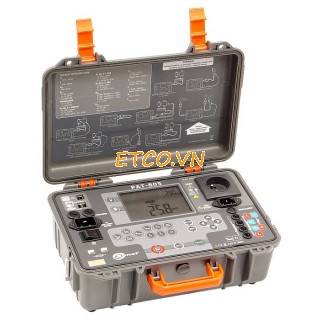

Thiết bị đo đa chức năng để bàn Sonel PAT-805
Thông số kĩ thuật thiết bị đo đa năng:
- Hãng sản xuất: Sonel
- Model: PAT-805
- Xuất xứ: Ba Lan
PAT-805 digital meter is used to measure the basic parameters of portable electrical equipment (power tools, white goods, etc.) which determine their safety: resistance of protective conductors, insulation resistance, continuity of connections, leakage current, power.
PAT-800 can be used to test the equipment performed in accordance with standards:
- EN 60745-1 Hand-held motor-operated electric tools. Safety. General requirements
- EN 61029 Safety of transportable motor-operated electric tools - General requirements
- EN 60335-1 Household and similar electrical appliances -Safety -Part 1: General requirements
- EN 60950 Safety of information technology equipment (IT Equipment)
Basic functions:
- measurement of protective conductor resistance with the currents: 200mA, 10A, 25A (protection class I),
- measurement of insulation resistance three measurement voltages: 100V, 250V and 500V
- measurement of equivalent leakage current,
- measurement of PE leakage current,
- measurement of residual leakage current,
- measurement of touch leakage current,
- measurement of equivalent leakage current,
- measurement of power,
- measurement of current consumption,
- IEC lead test.
Other:
- automatic measurement range selection,
- 990 memory cells for measurement results with option of uploading to a PC through a USB port or printing,
- professional software for data processing and reporting,
- cooperation with a barcode reader and printer,
- supports pendrive flash memory,
- large and clear graphic display with backlight,
- ergonomic operation.
Measurement of protective earth conductor resistance I=200mA
(protection class I)
| Display range | Resolution | Accuracy |
| 0,00...0,99Ω | 0,01Ω | ±(4% m.v. + 2 digits) |
| 1,00...19,99Ω | ±(4% m.v. + 3 digits) |
- test current: ≥200mA for R= 0,2...1,99Ω
- upper limit adjustable in the 10mΩ …1,99Ω range with the 0,01Ω resolution
- measurement time adjustable in 1...60s range, with the 1s resolution
Measurement of protective earth conductor resistance I=10A
(protection class I)
| Display range | Resolution | Accuracy |
| 0...999mΩ | 1mΩ | ±(3% m.v. + 4 digits) |
| 1,00...1,99Ω | 0,01Ω |
- technical method
- test current: ≥10A for R≤0,5Ω
- limit adjustable in the 10mΩ …1,99Ω range with the 0,01Ω resolution
- measurement time adjustable in 1...60s range, with the 1s resolution
Measurement of protective earth conductor resistance I=25A
(protection class I)
| Display range | Resolution | Accuracy |
| 0...999mΩ | 1mΩ | ±(3% m.v. + 4 digits) |
| 1,00...1,99Ω | 0,01Ω |
- technical method
- measurement with sinusoidal current of the mains frequency, test current: ≥25A for R≤0,2Ω
- limit adjustable in the 10mΩ …1,99Ω range with the 0,01Ω resolution
- measurement time adjustable in 1...60s range, with the 1s resolution
Measurement of L-N circuit resistance
| Display range | Resolution | Accuracy |
| 0...999mΩ | 1mΩ | ±(5% m.v. + 5 digits) |
| 1,00...4,99Ω | 0,01Ω |
- test voltage: 4...8V AC
- short-circuit current: max. 5mA
Measurement of insulation resistance
Measurement range according to IEC 61557-2 for:
UN=100V: 100kΩ...99,9MΩ
UN=250V: 250kΩ...199,9MΩ
UN=500V: 500kΩ...599,9MΩ
| UN | Display range | Resolution | Accuracy |
| 100V | 0...1999kΩ | 1kΩ | ±(5% m.v. + 8 digits) |
| 2,0...19,99MΩ | 0,01MΩ | ||
| 20,0...99,9MΩ | 0,1MΩ | ||
| 250V | 0...1999kΩ | 1kΩ | |
| 2,00...19,99MΩ | 0,01MΩ | ||
| 20,0...199,9MΩ | 0,1MΩ | ||
| 500V | 0...1999kΩ | 1kΩ | |
| 2...19,99MΩ | 0,01MΩ | ||
| 20,0...599,9MΩ | 0,1MΩ |
- limit adjustable in the: 0.01...9.9mA range with the 0.1MΩ resolution
- adjustable measurement time: continuous measurement (Cont), or from 4s to 3min with 1s resolution
- automatic discharge of the capacity of the tested device after measurement
- protection against measuring live devices
- output current max. 1.4mA
Measurement of PE and residual leakage current:
| Display range | Resolution | Accuracy |
| 0,00...3,99mA | 0,01mA | ±(5% m.v. + 2 digits) |
| 4,0...19,9mA | 0,1mA |
- limit adjustable in the 0.01...9.9mA range with the 0.01mA/0.1mA resolution
- adjustable measurement time: continuous measurement (Cont), or 1...60s with 1s resolution
- in the middle of the measurement time, the meter automatically switches the polarity at the measuring terminal and displays the greater value
Measurement of equivalent leakage current:
| Display range | Resolution | Accuracy |
| 0,00...3,99mA | 0,01mA | ±(5% m.v. + 2 digits) |
| 4,0...19,9mA | 0,1mA |
- limit adjustable in the 0.01...9.9mA range with the 0.01mA/0.1mA resolution
- adjustable measurement time: continuous measurement (Cont), or 1...60s with 1s resolution
- open circuit voltage 25...50V
Measurement of touch leakage current:
| Display range | Resolution | Accuracy |
| 0,00...4,999mA | 0,001mA | ±(5% m.v. + 3 digits) |
- limit adjustable in the 0.01...9.9mA range with the 0.01mA/0.1mA resolution
- adjustable measurement time: continuous measurement (Cont), or 1...60s with 1s resolution
- current measurement band 20Hz...100kHz
Measurement of power S:
| Display range | Resolution | Accuracy |
| 0...999VA | 1VA | ±(5% m.v. + 3 digits) |
| 1...3,99kVA | 0,01kVA |
- adjustable measurement time: continuous measurement (Cont), or 1...60s with 1s resolution
Measurement of current consumption:
| Display range | Resolution | Accuracy |
| 0,00...15,99A | 0,01A | ±(2% m.v. + 3 digits) |
- adjustable measurement time: continuous measurement (Cont), or 1...60s with 1s resolution
Voltage measurement:
| Display range | Resolution | Accuracy |
| 187,0…265,0V | 0,01V | ±(2% m.v. + 2 digits) |
„m.v.” measured value
Conforms to the EMC requirements according to EN 61326-1:2006 and EN 61326-2-2:2006.
Electrical safety:
- insulation according to EN 61010-1 and IEC 61557
- measurement category: II 300V acc.to EN 61010-1
- enclosure protection rating acc. to EN 60529: IP40
Other technical specification:
- power supply: 187...265V, 50Hz
- load current: max. 16A (230V)
- measurement results memory: 990 cells
- data transmission to PC: USB
- dimensions: 330 x 235 x 120mm
- weight: about 4,75kg
- operating temperature: 0...+40°C
- storage temperature: -20...+70°C
- humidity: 20...80%
