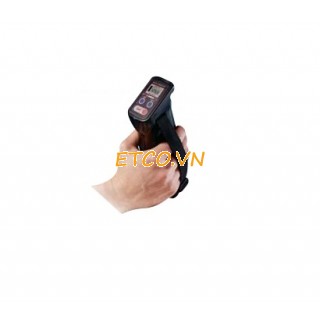

Thiết bị kiểm tra tỷ trọng Acquy SBS-2002 (1.000 ~ 1.300)
THÔNG SỐ KỸ THUẬT:
Hãng sản xuất: SBS
Model: SBS-2002
Xuất sứ: Mỹ
Thông số kỹ thuật:
- Phương pháp phát hiện: Dựa trên tỷ trọng riêng, hệ thống khúc xạ ánh sáng
- Thang đo: 1.000 ~ 1.300
- Hiển thị chỉ số: LCD, tỷ trọng riêng, nhiệt độ
- Thời gian đo: 3s sau khi nhấn nút "Start"
- Nguồn: Pin DC 9V
- Độ chính xác: +/- 0.002
- Tự động bù nhiệt độ tới 77°F(25°C)
- Tiết kiệm thời gian: Nhanh hơn phương pháp thông thường đến 5 lần
- Ống hút: 9.5”
- Chỉ dùng cho Acquy chì
- Phụ kiện kèm theo:
+ 3 Ống lấy mẫu
+ Pin 9V
+ Dây đeo
+ Hộp đựng
+ Hướng dẫn sử dụng
Digital Battery Hydrometer / Density Meter
SBS-2002: Digital Specific Gravity Tester for Lead Acid Batteries
Specific gravity testing has never been this easy. Simply insert the nozzle into the battery and depress the finger pump which draws a few drops of sulfuric acid (H2S04) through the tube. Within three seconds the measured refractive index is converted into a temperature compensated specific gravity reading and then both the specific gravity and temperature are displayed.
The SBS-2002 is lightweight, durable and easy to use, making it suitable for use in all industrial environments from Data Centers to Utility Substations.
Applications / Industries:
Battery
Petroleum
Food
Alcohol
Features:
Time savings — 5 times faster than conventional methods
±0.002 accuracy
Measures specific gravity and ambient temperature
Automatically temperature compensates to 77º ˚F (or 25º C)
LED display
For lead-acid batteries only
IP64 water resistant
Field calibrate with distilled water
SBS-2002 Includes:
Main unit
Three (3) silicone tubes
9V battery
Adjustable hand strap
Instruction manual
Case
Ordering Information
Part No. Description
SBS-2002 Digital specific gravity tester (Fahrenheit only)
SBS-2002C Digital specific gravity tester (Celsius only)
Accessory Ordering Information
Part No. Description
2002-SPR-PRT-KIT Spare parts kit includes: O-ring, sample
chamber w/ rubber pump, (3) 9" sample tubes
2002-HOL Holster w/ belt for SBS-2002
Specifications
Measured Items Specific gravity of sulfuric acid temp. compensated to 77° F (25° C)
Temperature of sulfuric acid as electrolyte in lead-acid batteries
Display LCD; specific gravity and temperature
Measuring Time Within 3 seconds after pushing "START" button
Measurement Range Specific gravity: 1.000 to 1.300
Temperature: 41 to 104° F (5 to 40° C)
Measurement
Accuracy Specific gravity: ±0.002 @ 50 to 86° F (10 to 30° C)
Temperature: ±1.8° F @ 50 to 86° F (±1° C @ 10 to 30° C)
Resolution Specific gravity: 0.001
Temperature: ±1° F (±1° C)
Method of Detection Light refraction system
Size & Weight 2.75" x 1.75" x 8.25"; 0.66 lbs.
Suction Nozzle 9.5"L x 1/8" dia. flexible silicone tube
