Công ty cổ phần thiết bị và công nghệ ETCO Việt nam

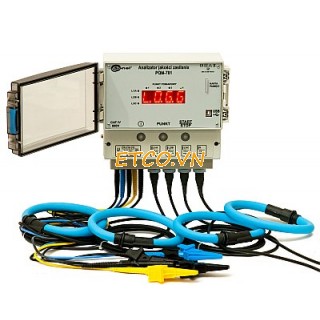

Thiết bị phân tích chất lượng điện Sonel PQM-701

Mã SP: PQM-701

Trạng thái: Còn hàng

Giá: 0 đ

Điểm nổi bật

Thiết bị phân tích chất lượng điện Sonel PQM-701

   Điện thoại đặt hàng: 04-6687-1848/0982-055-781
           Email: sale@etco.vn

Thiết bị phân tích chất lượng điện Sonel PQM-701

Thông số kĩ thuật thiết bị phân tích chất lượng điện:

  • Hãng sản xuất: Sonel
  • Model: PQM-701
  • Xuất xứ: Ba Lan

ANALYZER MEASURES AND RECORDS ACCORDING TO THE EN 61000-4-30 CLASS-A STANDARD

The device is designed to work with networks with nominal frequency 50/60Hz.

The device is designed to work with networks with nominal voltage:

  • 110/190V,
  • 115/200V,
  • 220/380V,
  • 230/400V,
  • 240/415V,
  • 400/690V.

The network configuration is set from the computer software.

Supported networks:

single-phase,
two-phase with the common N,
three-phase star with and without N,
three-phase triangle.

ANALIZER MEASURES AND RECORDS ACCORDING TO THE EN 61000-4-30 CLASS-A STANDARD

The device is designed to work with networkswith nominal frequency 50/60Hz.

The device is designed to work with networks with nominal voltage:

110/190V,
115/200V,
220/380V,
230/400V,
240/415V,
400/690V.
The network configuration is set from he computer software.

Supported networks:

single-phase,
two-phase with the common N,
three-phase star with and without N,
three-phase triangle.
Possible measurements:

Measurements according to EN 50160
Voltage L1, L2, L3, N-PE (five inputs, compiles with EN 61000-4-30, class A)
- average, minimum, maximum and instantaneous values, range to 690V, ability to work with voltage transformers,
Current L1, L2, L3, N (four inputs)
- average, minimum, maximum and instantaneous values, measurement current with range to 3kA (depends on used clamp), ability to work with current transformers,
Crest factor for voltage and current,
Frequency from 40Hz to 70Hz (compiles with EN 61000-4-30, class A),
Active, reactive, distortion, apparent power, including the type of reactive power (capacitive, inductive),
Power recording:
- Budeanu method,
- IEEE 1459,
Active, reactive, apparent energy,
Power factor, cosφ, tgφ,
K factor (transformer overload caused by the harmonics),
Up to 50th harmonics for voltage and current (compiles with EN 61000-4-7, class I),
Total Harmonic Distortion (THD) for voltage and current,
Short-term (PST) and long-term (PLT) flicker (compiles with EN 61000-4-15, class A),
Unballace of Voltage (compiles with EN 61000-4-30, class A) and current,
Voltage dips, swells and interruption registration including oscillograms (compiles with EN 61000-4-30, class A),
Current events registration including oscillograms,
Current and voltage oscillograms registration after each averaging period.
