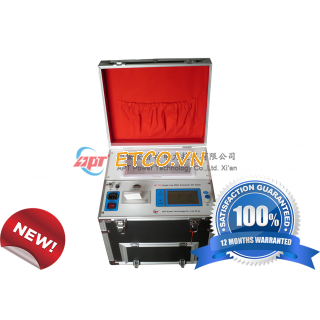

Thiết bị thử dầu cách điện 0 ~ 80kv OT776
Specifications
-Testing Voltage:0~80KV
-Accuracy:3 %
-Boosting Speed:2KV/s±10%
-Parameters Preset
-Consecutive test time:0~9
-Stir time: 0~99 seconds
-Stationary time: 0~9 minutes 59 seconds
-Output Voltage limited :20KV~70KV
-Withstand duration time: 1 minute~10 minutes
-Electrode Shape: mushroom-shaped
-Electrode Clearance:2.5mm, adjustable
-Input :220±10%Vac, 50Hz±1%, fuse5A
-Working Temperature:50C~400C,RH≤80%,no dew
-Demensions:430×370×300mm ,Net Weight :28Kg (Instrument)
Order Information
Item Art. No.OT776
Instrument(OT 776)1 set
Oil cup 1piece
High-voltage pole2 pieces
Stirring bar/Magnon1 piece
Power line1 piece
Ground lead1piece
Fuse tube (3A)3 pieces
Fuse tube (5A)3 pieces
Printing paper1roll
U disk (Data upload application software) 1piece
RS232 communication wire1piece
