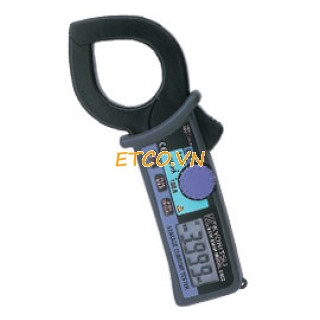

Ampe kìm đo dòng rò Kyoritsu 2432, K2432 (100A)
Thông số kĩ thuật ampe kìm đo dòng rò:
- AC A :4/40mA/100A (50/60Hz)
- AC A : (WIDE) 4/40mA/100A
- Tần số hưởng ứng: 20Hz~1kHz (40Hz~1kHz:100A)
- Đường kính kìm : Ø40mm max.
- Thời gian phản hồi : 2 seconds
- Nguồn : Two R03 or equivalent (DC1.5V) batteries
- Kích thước : 185(L) × 81(W) × 32(D)mm
- Khối lượng : 290g approx.
- Phụ kiện : Bao đựng, R03 (1.5V) × 2, HDSD
- Bảo hành : 12 tháng
- Hãng sản xuất : Kyoritsu - Nhật
- Xuất xứ : Nhật
- High Sensitive Model
- Frequency Selector Switch to eliminate the effect of harmonics.
- Three AC current ranges : 4mA/40mA/100A
- Ø40 ØMAXAC100A Resolution 0.001mA Filter
- PEAK 10ms 2432
- CE
| AC A (50/60Hz) |
4/40mA/100A |±1%rdg±5dgt (4/40mA) |±1%rdg±5dgt (0~80A) |±5%rdg (80.1~100A) |
| AC A (WIDE) |
4/40mA/100A |±1%rdg±5dgt [50/60Hz], |±2.5%rdg±10dgt [20Hz~1kHz] (4/40mA) |±1%rdg±5dgt [50/60Hz], |±2.5%rdg±10dgt [40Hz~1kHz] (0~80A) |±5%rdg [50/60Hz], |±10%rdg [40Hz~1kHz] (80.1~100A) |
| Frequency Response | 20Hz~1kHz (40Hz~1kHz:100A) |
| Maximum Circuit Voltage |
600V AC/DC (between line/neutral) 300V AC/DC (against earth) |
| Conductor Size | Ø40mm max. |
| Safety Standard | IEC 61010-1 CAT.III 300V Pollution Degree 2 IEC 61010-2-032 |
| Effect of External Stray Magnetic Field |
2mA AC approx. in proximity to a 15mm-dia conductor carrying 100A AC |
| Withstand Voltage | 3700V AC for 1 minute |
| Response Time | Approx. 2 seconds |
| Power Source | Two R03 or equivalent (DC1.5V) batteries |
| Dimensions | 185(L) × 81(W) × 32(D)mm |
| Weight | 290g approx. |
| Accessories | 9052 (Carrying Case) R03 (1.5V) × 2 Instruction Manual |
| Optional | 8008 (Multi-Tran)* |
* This Multi-Tran can not be used for leakage current measurement
