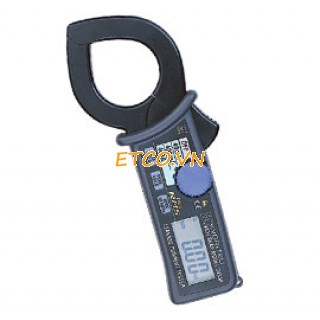

Ampe kìm đo dòng rò Kyoritsu 2433, K2433 (400A)
Thông số kĩ thuật ampe kìm đo dòng rò:
- AC A : 40/400mA/400A (50/60Hz)
- AC A : (WIDE) 40/400mA/400A
- Tần số hưởng ứng :20Hz~1kHz (40Hz~1kHz:400A)
- Đường kính kìm : Ø40mm
- Thời gian đáp ứng : 2 seconds
- Nguồn : Two R03 or equivalent (DC1.5V) batteries
- Kích thước :185(L) × 81(W) × 32(D)mm
- Khối lượng ampe kim: 270g
- Phụ kiện : Bao đựng, R03 (1.5V) × 2, HDSD
- Bảo hành : 12 tháng
- Hãng sản xuất : Kyoritsu - Nhật
- Xuất xứ : Nhật
- • Frequency Selector Switch to eliminate the effect of harmonics.
- • Three AC current ranges : 40mA/400mA/400A.
- Ø40 MAX AC400A Resolution 0.01mA Filter
- PEAK 10ms 2433
- CE
- AC A
- (50/60Hz) 40/400mA/400A
- |±1%rdg±5dgt (40/400mA)
- |±1%rdg±5dgt (0~350A)
- |±2%rdg (350.1~399.9A)
- AC A
- (WIDE) 40/400mA/400A
- |±1%rdg±5dgt [50/60Hz],
- |±2.5%rdg±10dgt [20Hz~1kHz] (40/400mA)
- |±1%rdg±5dgt [50/60Hz],
- |±2.5%rdg±10dgt [40Hz~1kHz] (0~350A)
- |±2%rdg [50/60Hz],
- |±5%rdg [40Hz~1kHz] (350.1~399.9A)
- Frequency Response 20Hz~1kHz (40Hz~1kHz:400A)
- Maximum
- Circuit Voltage 600V AC/DC (between line/neutral)
- 300V AC/DC (against earth)
- Conductor Size Ø40mm max.
- Safety Standard IEC 61010-1 CAT.III 300V Pollution Degree 2
- IEC 61010-2-032
- Effect of External
- Stray Magnetic Field 10mA AC approx. in proximity to a 15mm-dia
- conductor carrying 100A AC
- Withstand Voltage 3700V AC for 1 minute
- Response Time Approx. 2 seconds
- Power Source Two R03 or equivalent (DC1.5V) batteries
- Dimensions 185(L) × 81(W) × 32(D)mm
- Weight 270g approx.
- Accessories 9052 (Carrying Case)
- R03 (1.5V) × 2
- Instruction Manual
- Optional 8008 (Multi-Tran)*
- * This Multi-Tran can not be used for leakage current measurement
