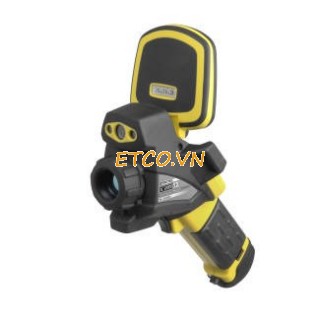

Camera nhiệt độ IC120 LV-Trotec(Germany)

Camera nhiệt độ IC120 LV-Trotec(Germany)

Xuất xứ: Đức
Hãng sản xuất: Trotec

Thông số kỹ thuật

• Nhiệt độ: -20 ° C đến 1500 ° C
• Độ chính xác: ± 2 ° C, ± 2% giá trị đo
• Loại Detector: Focal Plane Array (FPA), Microbolometer
• Độ phân giải Detector: 384 x 288 pixels
• Phạm vi quang phổ: 7,5-14 µm
• FOV: 24 ° x 21 °
• Độ phân giải hình học: 1.1 mrad
• Nhạy nhiệt: 0,05 ° C ở 30 ° C
• Hình ảnh tốc độ làm mới: 50/60 Hz
• Min. khoảng cách lấy nét: 0.10 m
• Màn hình: LCD 3,5 inch, 320 x 240 Pixel
• Loại Laser: Semiconductor AlGalnP Diode Laser, 1 mw / 635 nm đỏ
• Phân loại Laser: Class 2
• Loại pin: pin lithium-ion sạc tiêu chuẩn, thay thế
• Thời gian hoạt động: ≈2.5 h
• Nhiệt độ hoạt động: -15 ° C đến 50 ° C
• Nhiệt độ bảo quản: -40 ° C đến 70 ° C
• Lớp bảo vệ: IP 54 IEC 529
• Chống sốc để: 25g IEC 68-2-29
• Chống rung để: 2G IEC 68-2-6
• Kích thước: 230 x 80 x 195 mm
• Trọng lượng: 650 g

IC120 LV Infrared Camera
The IC120 LV infrared camera enlarges all the benefits the V-line already has to offer: coming with a powerful 384 x 288 infrared sensor with 110,592 measuring spots and a temperature range from -20 °C to +1,500 °C.
IC120 LV Infrared Camera
IC120 LV Infrared Camera - Ansicht 1
Choose bundle and save money
This infrared camera from the LV-series, equipped with a real image camera, a photo lamp, DuoVision display option for real-time display from overlapping IR and real-time image.

The IC120 LV's technical data:

• Temperature range: -20 °C to +1,500 °C
• Accuracy: ±2 °C, ± 2% of the measured value
• Detector type: Focal Plane Array (FPA), uncooled microbolometer
• Detector resolution: 384 x 288 pixels
• Spectral range: 7.5 to 14 µm
• Field Of View (FOV): 24° x 21°
• Geometric resolution: 1.1 mrad
• Thermal sensitivity: 0.05 °C at 30 °C
• Image refresh rate: 50/60 Hz
• Min. focussing distance: 0.10 m
• Display: 3.5 inch LCD, 320 x 240 Pixel
• Laser type: Semiconductor AlGalnP Diode Laser, 1 mw/635 nm red
• Laser classification: Class 2
• Battery type: Rechargeable standard lithium-ion battery, replaceable
• Operating time: ≈2.5 h
• Operating temperature: -15 °C to +50 °C
• Storage temperature: -40 °C to +70 °C
• Protection class: IP 54 IEC 529
• Shockproof to: 25G IEC 68-2-29
• Vibration-proof to: 2G IEC 68-2-6
• Dimensions: 230 x 80 x 195 mm
• Weight: 650 g

More benefits at a glance:

• Digital photo camera: Colour depiction 680 x 480, integrated photo lamp
• Image display pseudo colours, 6 colour palettes
• Image display options IR image, real image, different DuoVision options for combined display of IR and real imaged
• Up to four moveable measuring points (3 x manual and 1 x automatic)
• Isotherm function (between the upper and lower limit values)
• Variably adjustable emission factor from 0.01 to 1.0
• Automatic measurement correction on the basis of user-defined specifications for environmental temperature, distance, relative humidity
• Interchangeable memory card slot for mini-SD card
• 14-bit radiometric IR format
• Adjustable energy saving mode
• The integrated memory card slot provides for quick and comfortable memory management and the mini-SD card that is included in the scope of delivery can comfortably store thousands of images.

Scope of delivery:

• IC120 LV with standard lens, LCD monitor and laser
• 110/230 volt battery charger with charging status indicator
• Li-ion battery
• Mini-SD interchangeable memory card
• Video cable
• Operating instructions
• Carry case
• Software package
• Temperature test certificate

Optional accessories:

• Tripod attachment
• Power supply unit
• 12V cigarette lighter adapter
• Additional battery
• Bluetooth expansion pack and Bluetooth headset
• Real-time upgrade*
• Further software packages on request
