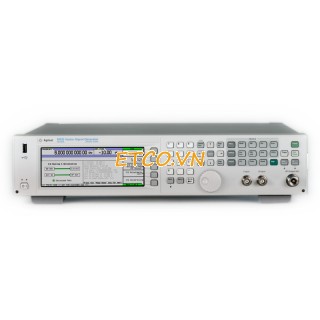

Máy phát tín hiệu Agilent N5182A
Agilent N5182A là máy phát tín hiệu hàng đầu với độ ồn, nhiễu thấp, năng lượng sóng cao. Agilent N5182A gồm các tính năng tiên tiến, khả năng đo quét liên tục, hoàn toàn tự động sử dụng mạng phân tích vô hướng Keysight.
Agilent N5182A có cấu trúc đáp ứng mọi yêu cầu kiểm tra.Tùy chỉnh PSG cho RF và các thử nghiệm vi sóng khác nhau, từ LO đồng hồ thay thế để xử lý sự cố đến các máy phát tín hiệu nhiễu. Một loạt các cải tiến ,tùy chọn và phụ kiện có sẵn. Kiến trúc mô-đun nên dễ dàng cấu hình PSG để giải quyết ứng dụng thử nghiệm cụ thể, không những phục vụ yêu cầu hiện tại mà còn các tùy chọn để nâng cấp trong tương lai.
Thông số kỹ thuật:
- Dải tần số: 3 GHz - 6 GHz
- Độ phân giải: 0.01 Hz
- Độ chính xác đầu ra: +/- 0.5 dB
- Dải dầu ra: -136 dBm - 11 dBm
- Độ phân giải: 0.02 dB
- SSB Phase Noise : <-118 dBc/20kHz.
Cấu hình tùy chọn:
- 006 Instrument security
- 019 Upgrade baseband generator memory to 64 Msa
- 1CM Rackmount kit
- 1CN Front handle kit
- 1CP Rackmount and front handle kit
- 1CR Rack Slide Kit
- 1EL Differential I/Q outputs
- 1EM Move RF output to rear panel
- 1EQ Low power (<-110dBm)
- 1ER Flexible reference input (1-50MHz)
- 221 Waveform 5-pack1
- 222 Waveform 5-pack2
- 223 Waveform 5-pack3
- 224 Waveform 5-pack4
- 225 Waveform 5-pack5
- 226 Waveform 5-pack6
- 227 Waveform 5-pack7
- 228 Waveform 5-pack8
- 229 Waveform 5-pack9
- 403 Calibrated AWGN
- 430 Multitone and two-tone
- 431 Custom digital modulation
- 432 Phase noise impairment
- 503 Frequency range from 250kHz to 3GHz
- 506 Frequency range from 250kHz to 6GHz
- 651 Internal baseband generator (30 Msa/s, 8 Msa)
- 652 Internal baseband generator (60 Msa/s, 8 Msa)
- 654 Internal baseband generator (125 Msa/s, 8 Msa)
- AB1 Korea - Korean localization
- AB2 China - Chinese localization
- ABA Printed copy of the English documentation set
- ABJ Japan - Japanese localization
- AKT Russia - Russian Localization
- CD1 CD-ROM containing the English documentation set
- HNW Pre-release to provide Narrow Pulse Modulation
- LIC License CD-ROM
- R3Q N7612B-3FP TD-SCDMA - connect to N5182A signal generator, fixed, perpetual license
- R43 N7612B-EFP TD-SCDMA - basic TD-SCDMA, fixed, perpetual license
- R4D N7612B-QFP TD-SCDMA - advanced TD-SCDMA, fixed, perpetual license
- RMKT Agilent refurbished product
- SK1 SW KIT- SW CD
- SK2 SW KIT- SW CD, Pre-Installed SW LIC Notice
- SK3 SW KIT- SW CD, LIC Redemption Entitlement Cert 51
- SK4 SW KIT- SW CD, LIC CD, LIC Redemption Entitlement Cert 51
- SK5 SW KIT- SW CD, LIC Redemption Entitlement Cert 51, Pre-Installed SW LIC Notice
- SK6 SW KIT- SW CD, LIC CD, LIC Redemption Entitlement Cert 51, Pre-Installed SW LIC Notice
- UK6 Commercial calibration certificate with test data
- UNM Standard front and rear panel connector configuration
- UNT AM, FM, phase modulation
- UNU Pulse modulation
- UNV Enhanced dynamic range
- UNW Add Narrow pulse modulation
- UNZ Fast switching.
