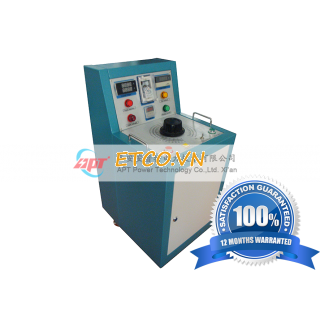

Máy tạo dòng điện PI502
- Loại điều chỉnh bằng tay
- Hãng sản xuất: APT
- Bộ sản phẩm bao gồm:
- Modul: tạo dòng
- Modul: điều khiển
- Xuất xứ: trung quốc
- Bảo hành 12 tháng
Two range current output Specifications:
- Output current can be adjusted continuously
- Easy to operate
- On trolley so that can be moved easily
Product Features:
- Two range current output, 0~1000A/0~2000A
- Output current can be adjusted continuously, from 0 to rated value
- AC single phase output
- Easy to operate
- On trolley so that can be moved easily.
Specifications:
- Input : 380V±10%, 15.8A, 50Hz±1%
- Output:
- a)Output Current:2000A, Output Voltage: 0~3V/50Hz±1%. in parallel
- b)Output Current:1000A, Output Voltage: 0~6V/50Hz±1%. in series
- Duration: 3 minutes @rated current output
- Duty Cycle: more than10 minutes
- Capacity: 6KVA
- Accuracy: 1.5%
- Demensions:600×430×790mm (Instrument)
- Net Weight :145Kg (Instrument)
- Output Current Cable: 2500mmX2 pcs
- Order Information:
- PI502, One Piece
- Output Current Cable: 2500mmX2 pcs
- Ground Cable
