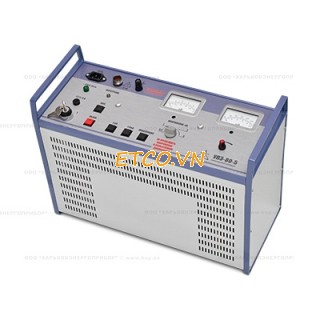

Máy thử cáp polyethylene (XLPE) KEP UPZ-80-5 (5kV)
Hãng sản xuất: KEP
Xuất xứ: Ukraine
Model: UPZ-80-5
Thông số kỹ thuật: Máy thử cáp polyethylene (XLPE) KEP UPZ-80-5 (5kV)
Sử dụng để thử nghiệm các vỏ bọc của cáp làm bằng polyethylene liên kết ngang (XLPE), cũng như sơ bộ và chính xác vị trí của các đứt gãy vỏ. Cũng có thể được sử dụng để chuyển các khiếm khuyết của điện trở cao trong cáp tín hiệu, cáp điều khiển và cáp truyền thông cáp.
Điện áp vào AC, V: 220±11
Tần số, Hz: 50+1
Dòng điện tiêu thụ max, A: 4
Công suất tiêu thụ max, kVA: 0.750
Kiểu điện áp ra: AC
Dòng điện ra lớn nhất, mA: 1500, 600, 300, 150
Điện áp ra thử, KV : 0.5, 1, 2, 5
Sai số, %: ±3
Điện dung tải lớn nhất, µF: 0.1
Chu kỳ làm việc dưới tải:
- thời gian làm việc min, h: 2
-Không làm việc max , h: 1
Trọng lượng kg, max: 25
Kích thước , mm: 480x200x350
Tuổi thọ trung bình 10 năm
Cung cấp kèm theo:
- Máy thử UPZ-80-5 1 cái
- Cáp cao áp (dài 4 m) 1 cái
- Cáp nguồn (dài 1,8 m) 1 cái
- Cáp nối đất (tiết diện 6 mm2, dài 4 m) 1 cái
- Cầu chì 2 cái
XLPE cables sheath tester UPZ-80-5 is designed for testing the sheath of cables made of cross-linked polyethylene (XLPE), as well as preliminary and accurate location of the sheath faults. UPZ-80-5 could be used for transforming the high-resistance defects in signal, control and communication cables.
UPZ-80-5 is a portable monoblock device.
- Technical Specifications
Characteristic Value Single-phase AC power supply voltage, V 220±11 Power supply frequency, Hz 50...60 Maximum consumed current, A 4 Maximum consumed power, kV*A 0.750 Type of output voltage AC Maximum output current, mA 1500, 750, 350, 150 Output testing voltage, V 500, 1000, 2000, 5000 Reduced error of high voltage measurement, % ±3 Reduced error of output current measurement, % ±3 Minimum load capacitance, µF 0.1 Duty cycle under normal load: - working, h, min 2 - not working, h, max 1 Net weight, kg, max 25 Dimensions, mm 560х410х305 Lifespan, years, avg 10 - Operating Conditions
The device is designed for indoors operation under the following conditions:
Condition Value Air temperature, °С from -5 to +45 Relative humidity, %, up to 80 at +25° С Atmospheric pressure, kPa (mm hg) 84,0 – 106,7 (630 – 800)
