- Máy thử điện áp đánh thủng cách điện KEP UPU-10 (10kV)

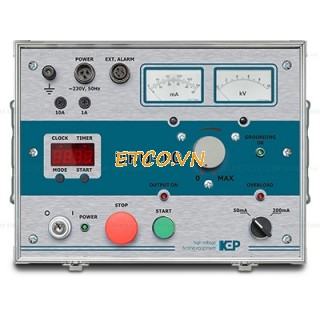

Máy thử điện áp đánh thủng cách điện KEP UPU-10 (10kV)
Hãng sản xuất: KEP
Xuất xứ: Ukraine
Model: UPU-10
Thông số kỹ thuật: Máy thử điện áp đánh thủng cách điện KEP UPU-10 (10kV)
Dùng để thử nghiệm các tính chất cách điệnc của các thiết bị điện 0-10 kV
Nguồn cung cấp AC, V: 220 ± 22
Tần số, Hz: 50 ± 1
Công suất tiêu thụ lớn nhất, kVA, max: 2
Điện áp ra lớn nhất (RMS), kV: 10
Dòng điện hoạt động lớn nhất (RMS ), mA: 200
Dải điện áp thử, kV: 0-10
Dải dòng điện thử d , mA: 0-50; 0-200
Timer mods, min: .1; 2; 3; 4; 5
Sai số, % 3
Hoạt động liên tục ở điện áp max ít nhất 30 phút
Hoạt động liên tục ở dòng điện max ít nhất 30 phút
Trọng lượng, kg, max: 40
Kích thước mm, max: 600 × 380 × 310
Tuổi thọ trung bình 10 năm
Cung cấp kèm theo:
- Máy chính UPU-10 1 cái
- Cáp nguồn 1 cái
- Cáp cao áp 1 cái
- Dây nối đất 1 cái
- Giá đựng tín hiệu 1 cái
- Cầu chì 2 cái
- HDSD
Universal insulation breakdown tester UPU-10 is designed for testing the insulation properties of the electrical equipment with an AC sinusoidal voltage of 50 Hz frequency.
Due to the high output current, UPU-10 can also be used for testing the insulation braiding of large electric machinery with AC voltage.
- Technical Specifications
Parameter Value Supply voltage single-phase AC, V 220 ± 22 Frequency, Hz 50 ± 1 Highest power consumption, kVA, max 2 Highest output voltage (RMS), kV 10 Maximum operating current (RMS ), mA 200 Ranges test voltage, kV 0-10 Measurement range test current , mA 0-50; 0-200
Timer mods, min. 1; 2; 3; 4; 5 Reduced measurement error of the test voltage, %, max 3 Reduced measurement error of the test current, %, max 3 Continuous operation at the maximumvoltage min., at least 30 Continuous operation at maximum current , min., at least 30 Weight, kg, max 40 Dimensions, mm, max 600 × 380 × 310 Lifespan, years, average 10 - Operating Conditions
The device is designed for an indoors operation under the following conditions:
Condition Value Air temperature, °С from +5 to +40 Relative humidity, %, up to 80 at +20° С Atmospheric pressure, kPa (mm hg) 84,0 – 106,7 (630 – 800)
