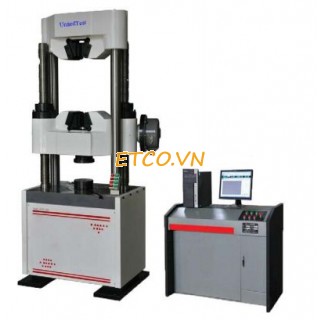

Máy thử kéo vạn năng thủy lực (WAW-C series PC Controlled Hydraulic Servo UTM)
Applications
Perform tension, compression, flexure/bending and shearing for specimens. Suitable for metal and nonmetal material, such as iron, steel, steel bar, rebar, cement, concrete, rod and so on. Specially design for production, research, student training and industrial laboratory. Comply with ISO, BS, ASTM, JIS standard and so on.
Features
★ Computer controlled hydraulic servo operate loading model, adopt Japan SHIMADZU technology, worm wheel and worm shaft to drive crosshead up and down; double working space, tensile test at upside of crosshead, compression and bending test between working bench and crosshead;
★ It adopts the hydraulic pressure to drive the cylinder, so loading on the specimen to perform the test. Hydraulic station supplies super and stable pressure to the system; the soundproof insulation can reduce the noise level of the power pack to 75 dB (A), with lower noise, tiny energy consuming and lower heat.
★ Unique screw gap eliminating structure can guarantee the continuity of the test;
★ Independent hydraulic clamping structure can guarantee the reliability of the system; it will not hurt person for falling specimen and ensure the safety of operator;
★ Limitation and electrical protection system can ensure the security of using;
★ The load frame adopts oil cylinder bottom type structure, hydraulic load, hydraulic clamping specimen;
★ Servo valve can control the speed arbitrarily through the software. It can carry out loading, unloading and oil quick feedback function(i.e. the cylinder come back to its original position after the test);
★ Crosshead (the middle beam) movement is by motor and, worm wheel and worm shaft structure; this kind of structure to make the machine more stable and test data accuracy, as there few friction, this structure can guarantee more long working life of the testing machine;
★ Standard delivery is oil pressure sensor, can change as load cell if customer require.
Specification
