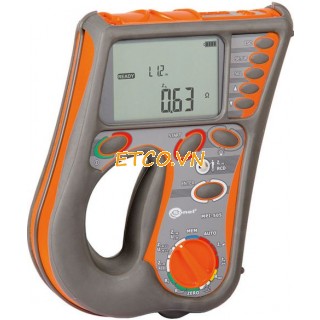

Thiết bị đo cài đặt điện đa chức năng Sonel MPI-505

Mã SP: MPI-505

Trạng thái: Còn hàng

Giá: 0 đ

Điểm nổi bật

Thiết bị đo cài đặt điện đa chức năng Sonel MPI-505

   Điện thoại đặt hàng: 04-6687-1848/0982-055-781
           Email: sale@etco.vn

Thiết bị đo cài đặt điện đa chức năng Sonel MPI-505

Hãng sản xuất: Sonel
Xuất xứ: Balan-EU
Model: MPI-505

Thông số kỹ thuật: Thiết bị đo cài đặt điện đa chức năng Sonel MPI-505

Multifunction Electrical Installations Meter

Description

Measurement of short-circuit loop parameters:

  • in L-PE, L-N, L-L circuits as well as in L-PE (RCD) circuits - without tripping RCD breakers of current 30 mA.
  • impedance measurement of short-circuit loops in power networks of nominal voltages: 115/200 V, 220/380 V, 230/400 V, 240/415 V and frequencies in the range of 4565 Hz..

Testing of AC and A types residual current circuit breakers:

  • testing of regular and selective residual current circuit breakers of nominal differential currents: 10 mA, 30 mA, 100 mA, 300 mA, 500 mA, 1000 mA,
  • IA trip current measurement,
  • tA trip time measurement for 0.5In, In, 2In, 5In,
  • measurement of earth continuity and touch voltage without tripping RCDs,
  • functionality of automatic measurement of residual current circuit breaker parameters.

Measurement of insulation resistance at voltages: 100 V, 250 V, 500 V and 1000 V.

Low-voltage measurement of resistance, protective connections and equipotential bonding:

  • measurement of continuity of protective connections with current ±200 mA,
  • automatic calibration of test leads - capability of using any test leads,
  • measurement of resistance with low current and acoustic signaling.

Quick verification of correctness of the PE wire connection with a touch probe.

Measurement of AC voltage.

Indication of phase sequence.

Memory of 990 measurements, data transfer to a PC over the USB interface.

Specifications

Measurement of short-circuit loop impedance ZL-PE, ZL-N, ZL-L

Measurement range acc. to IEC 61557: 0.13...1999 Ω for a 1.2 m test lead:

Display range Resolution Accuracy
0,00...19,99 Ω 0,01 Ω ±(5% m.v +3 digits)
20,0...199,9 Ω 0,1 Ω
200...1999 Ω 1 Ω
  • Nominal operating voltage UnL-N/ UnL-L: 115/200 V, 220/380 V, 230/400 V, 240/415 V
  • Operating voltage range: 100…264 V (for ZL-PE i ZL-N) and 100…440 V (for ZL-L)
  • Nominal power network frequency fn: 50 Hz, 60 Hz
  • Operating frequency range: 45…65 Hz
  • Maximal measurement current: 23 A at 230 V (10 ms), 40 A at 400 V (10 ms),
  • Verification of correctness of the PE terminal connection with a touch (for ZL-PE)



Measurement of short-circuit loop impedance ZL-PE in the RCD mode
Measurement range acc. to IEC 61557: 0.5...1999 Ω for a 1.2 m test lead

Display range Resolution Accuracy
0,00...19,99 Ω 0,01 Ω ±(6% m.v + 10 digits)
20,0...199,9 Ω 0,1 Ω ±(6% m.v + 5 digits)
200...1999 Ω 1 Ω
  • Does not trip RCD breakers of RCD current IΔn ≥ 30 mA
  • Nominal operating voltage Un: 115 V, 220 V, 230 V, 240 V
  • Operating voltage range: 100…264 V
  • Nominal power network frequency fn: 50 Hz, 60 Hz
  • Operating frequency range: 45…65 Hz
  • Verification of correctness of the PE terminal connection with a touch probe



Measurement of insulation resistance
Measurement range acc. to IEC 61557 - 2:

  • for UN = 100 V: 100 kΩ...500 MΩ
  • for UN = 250 V: 250 kΩ...1 GΩ
  • for UN = 500 V: 500 kΩ...2 GΩ
  • for UN = 1000 V: 1 MΩ...3 GΩ



Display range*) Resolution Accuracy
0...1999 kΩ 1 kΩ ±(3% m.v. + 8 digits)
2,00...19,99 MΩ 0,01 MΩ
20,0...199,9 MΩ 0,1 MΩ
200...500 MΩ 1 MΩ
200...1000 MΩ 1 MΩ
200...1999 MΩ 1 MΩ
2,00...3,00 GΩ 0,01 GΩ ±(4% m.v. + 6 digits)



*) not exceeding the measurement range for a given voltage.

  • Measurement voltage: 100 V, 250 V, 500 V and 1000 V
  • Detection of presence of voltage before the measurement
  • Discharge of the measured object after the measurement
  • Measurements of voltage on terminals +RISO, -RISO within the range of: 0…440 V
  • Measurement current < 2 mA

Low-voltage measurement of circuit continuity and resistance
Measurement of protective conductor continuity with current ±200 mA
Measurement range acc. to IEC 61557 - 4: 0.12...400 Ω

Range Resolution Accuracy
0,00...19,99 Ω 0,01 Ω ±(2% m.v. + 3 digits)
20,0...199,9 Ω 0,1 Ω
200...400 Ω 1 Ω
  • Voltage on open terminals: 4…9 V
  • Output current at R<2 Ω: min. 200 mA
  • Compensation of test lead resistance
  • Measurements for both polarities of current

Measurements of RCD breaker parameters (operating voltage range 100…264 V):
RCD tripping test and measurement of tA trip time (for the tA measurement function)

RCD type Test current
multiplier
Range Resolution Accuracy
Standard 0,5*IΔn 0...300 ms

1 ms

± (2% m.v. + 2 digits)

1*IΔn
2*IΔn 0...150 ms
5*IΔn 0...40 ms
Selective 0,5*IΔn 0...500 ms
1*IΔn
2*IΔn 0...200 ms
5*IΔn 0...150 ms

*for IΔn= 10 mA and 0.5 IΔn uncertainty is + 2% m.v. + 3 digits



Measurement of IRCD trip current for sinusoidal differential current:



Selected
current
Measurement
range
Resolution Test
current
Accuracy
10 mA 3,3...10,0 mA 0,1 mA 0,3xIΔn...1,0xIΔn ± 5% IΔn
30 mA 9,0...30,0 mA
100 mA 33...100 mA 1 mA
300 mA 90...300 mA
500 mA 150...500 mA
1000 mA 330...1000 mA
  • Capability of starting the measurement from either positive or negative half-period of forced leakage current

Measurement of IA RCD trip current for pulsating unidirectional current:

Selected
current

Measurement
range
Resolution

Test
current

Accuracy
10 mA 4...20,0 mA 0,1 mA 0,35 x IΔn ...2,0 x IΔn ±10% IΔn
30 mA 12,0...42,0 mA 0,35xIΔ..1,4xIΔn
100 mA 40,0...140 mA 1 mA
300 mA 120...420 mA
500 mA 200...700 mA
  • Capability of measurement for either positive or negative half-periods of forced leakage current
  • Maximal time of the measurement current flow is 3200 ms

“m.v” - measurement value
