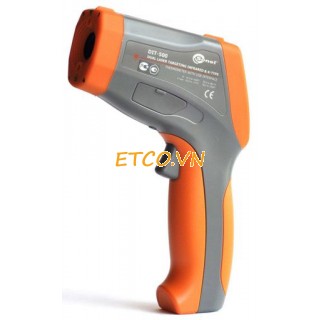

Súng đo nhiệt độ bằng hồng ngoại Sonel DIT-500 ( -50...1600°C)
Hãng sản xuất: Sonel
Xuất xứ: Balan-EU
Model: DIT-500
Thông số kỹ thuật: Súng đo nhiệt độ bằng hồng ngoại Sonel DIT-500 ( -50...1600°C)
Description
Temperature meters operating in the infrared are used to determine the temperature of the surface of the item. The optical system of the device detects the emitted, bounced and sent energy, which is collected and concentrated on the detector. Electronic system translates optical data into temperature value. In order to increase accuracy the laser pointer is built-in the device.
Specifications
IR temperature range
| IR temperature range |
D:S | Resolution | Accuracy | |
| -50...999,9°C -58...999,9°F |
50:1 | 0,1°C 0,1°F |
-50...20°C -58...68°F |
±2,5°C ±4,5°F |
| 1000...1600°C 1000...2912°F |
1°C 1°F |
20...400°C 68...752°F |
±(1,0% m.v. + 1°C) ±(1,0% m.v. + 1,8°F) |
|
| 400...800°C 752...1472°F |
±(1,5% m.v. + 2°C) ±(1,5% m.v. + 3,6°F) |
|||
| 800...1600°C 1472...2912°F |
±2,5% m.v. | |||
Type K temperature range
| Type K temperature range |
Resolution | Accuracy |
| -50...999,9°C -58...999,9°F |
0,1°C 0,1°F |
±(1,5% m.v. + 3°C) ±(1,5% m.v. + 5°F) |
| 1000...1370°C 1000...2498°F |
1°C 1°F |
±(1,5% m.v. + 2°C) ±(1,5% m.v. + 3,6°F) |
D:S” - Distance (D) to Spot Size (S)
„m.v.”- measured value
„m.v.”- measured value
Rated operational conditions:
- operating temperature: 0...+50°C
- storage temperature: -20...+60°C
- humidity: 10...90%
Other technical data:
- display LCD: segment with a backlight
- spectral response: 8~14μm
- emissivity: digitally adjustable from 0,10 to 1,0
- polarity: automatic, (-) sign for negative polarity
- diode laser: output <1 mW, wave length 630~670 nm, class 2 laser product
- power supply: 9 V battery, NEDA 1604 A or IEC 6LR61
- over range indication: LCD will show „----”
- response time: 150 ms
- weight: 350 g
- dimensions: 230 x 155 x 54 mm
„CE” - comply with EMC
