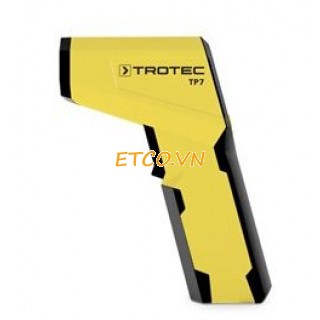

Súng đo nhiệt độ hồng ngoại Trotec TP7
Hãng sản xuất: Trotec
Xuất xứ: Đức
Bảo hành: 12 tháng
Thông số kỹ thuật súng đo nhiệt độ hồng ngoại Trotec TP7
Benefits in practice:
Development, design, production: 100% TROTEC
High precision - rapid response time
Large temperature range between -50°C and +1,000°C
Dual laser technology for measuring spot diameter display
Freely-selectable degree of emission from 0.1 to 1.0
Alarm function and a plurality of demanding added functions
Backlit display
Technichal data:
Accuracy
± 2.5°C at -50°C to 20°C
± 1% at 21°C to 300°C
± 1.5% at 301°C to 1,000°C
Reproducibility
± 1.3°C at -50°C to 20°C
± 0.8% or ± 0.5°C at 21 °C to 1,000°C
Optical resolution (D:S): 30:1
Smallest measurement spot: 25,4 mm @ 762 mm
Temperature range: -50°C to +1,000°C
Reaction time: < 150 ms
Spectral sensivity: 8 ~ 14 µm
Laser class: Class 2 (II)
Wavelength: 630 ~ 670 nm
Power: <1 mW
Display: LCD, monochrome
Operating conditions (operation): 0°C to 50°C, 10% to 90% RH
Operating conditions (storage): -10°C to 60°C, < 80% RH (non-condensing)
Power supply: 9 V IEC 6LR61
Switchable dual-laser
Temperature units switchover function: °C / °F
Resolution: 0.1 °C
Permanent measurement function
Maximum value indicator
Display value attitude
Alarm function with userdefined threshold values
Degree of emission is adjustable from 0.1 to 1.0
Backlit LCD display
Automatic switch off
Dimensions (l x w x h): 104 x 43 x 146 mm
Weight: 163 g
Housing: plastic
