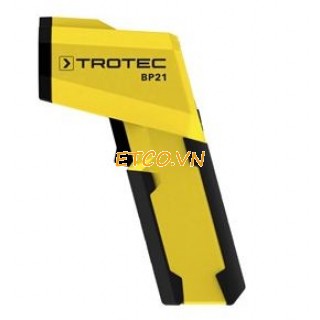

Súng đo nhiệt độ hồng ngoại Trotec BP21
Hãng sản xuất: Trotec
Xuất xứ: Đức
Bảo hành: 12 tháng
Thông số kỹ thuật súng đo nhiệt độ hồng ngoại Trotec BP21
Tỷ lê: 12:1
Dải đo: -35 °C to +800 °C
Độ chính xác.: ± 2% from the measured value or ± 2 °C
Độ phân giải: 0.1 °C
Thời gian lấy mẫu: 0.3 seconds
Độ nhạy phổ: 6 - 14 µm
Nguồn cấp: 9V-block battery
Kích thước (l x w x h): 108 x 45 x 150 mm
Khối lượng: 177 g
Benefits in practice:
Trotec: 100% research, design and manufacture
Contact-free surface temperature measuring from -35 °C to +800 °C
Emission degree of 0.1 to 1.0, freely adjustable
Measuring optical resolution 12:1
Ideal price-performance ratio
Measuring spot diameter display due to dual laser technology
Minimum/maximum value and hold function
Backlit display
Alarm function
Practically optimized german industry design - registered design
Technical data:
Optical resolution: 12:1
Temperature range: -35 °C to +800 °C
Accuracy max.: ± 2% from the measured value or ± 2 °C
Smalles measuring spot-Ø: 12.5 mm (distance 150 mm)
Resolution: 0.1 °C
Response time: 0.3 seconds
Spectral sensivity: 6 - 14 µm
Power supply: 9V-block battery
Dimensions (l x w x h): 108 x 45 x 150 mm
Weight: 177 g
