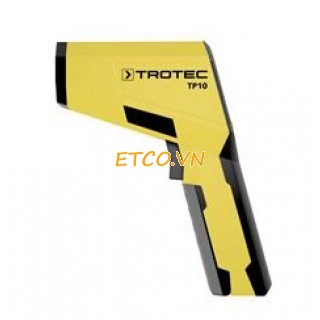

Súng đo nhiệt độ hồng ngoại Trotec TP10

Súng đo nhiệt độ hồng ngoại Trotec TP10

Hãng sản xuất: Trotec

Xuất xứ: Đức

Bảo hành: 12 tháng

Thông số kỹ thuật súng đo nhiệt độ hồng ngoại Trotec TP10

Benefits in practice:

• Development, design, production: 100% TROTEC
• High precision - rapid response time
• Large temperature range between -50°C and +1,850°C
• Dual laser technology for measuring spot diameter display
• Freely-selectable degree of emission from 0.1 to 1.0
• Alarm function and a plurality of demanding added functions
• Backlit display

Technichal data:

Accuracy

• ± 3°C at -50°C to 20°C
• ± 1% or 1°C at 20°C to 500°C
• ± 1.5% or 2°C at 500°C to 1,000°C
• ± 2% at 1,000°C to 1,850°C

Reproducibility

• ± 1.5°C at -50°C to 20°C
• ± 0.5% or ± 0.5°C at 20 °C to 1,000 °C
• ± 1% at 1,000°C to 1,850 °C

• Optical resolution (D:S): 75:1
• Smallest measurement spot: 18 mm @ 1,350 mm
• Temperature range: -50°C to +1,850°C
• Reaction time: < 150 ms
• Spectral sensivity: 8 ~ 14 µm
• Laser class: Klasse 2 (II)
• Wavelength: 630 ~ 670 nm
• Power: <1 mW
• Display: LCD, monochrome
• Temperature range (contact-temperature sensor): 50°C to +300°C
• Accuracy (contact-temperature sensor): ±1,5% or ± 3°C
• Reproducibility (contact-temperature sensor): ± 1.5%
• Operating conditions (operation): 0°C to 50°C, 10% to 90% RH
• Operating conditions (storage): -10°C to 60°C, < 80% RH (non-condensing)
• Power supply (internal): 9 V IEC 6LR61
• Power supply (external): via USB
• Switchable dual-laser
• Temperature units switchover function: °C / °F
• Resolution: 0.1 °C
• Permanent measurement function
• Minimum value indicator
• Maximum value indicator
• Differential value display
• Average value display
• Hold displayed value
• Alarm function with userdefined threshold values
• Degree of emission is adjustable from 0.1 to 1.0
• Backlit LCD display
• Automatic switch off
• Maximum value indicator
• Open target eyepiece
• Saveable measuring values: 100
• Additional temperature measurements: with external type K sensor
• Can be used for software-supported measurement series
• USB port
• Tripod socket ¼-inch - 20 UNC
• Dimensions (L x W x H): 168 x 56 x 225 mm
• Weight: 350 g
• Housing: plastic
