Thiết bị đo tốc độ, lưu lượng, nhiệt độ gió BA15-Trotec(Germany)
Xuất xứ: Đức
Hãng sản xuất: Trotec
Thông số kỹ thuật
- Dải đo vận tốc: 1-30 m / s, 196 - 5,900 ft / min, 3,6-108,0 km / h
- Phạm vi đo tốc độ dòng chảy không khí: 0-999,9 ft³ / phút (CFM)
- Dải nhiệt độ đo: -10 đến 60 ° C (14 đến 140 ° F)
- Vận tốc chính xác: ± 3% ± 0,20 m / s, ± 3% ± 40 ft / min, ± 3% ± 0.8 km / h
- Nhiệt độ chính xác: ± 1,5 ° C (± 3,0 ° F)
- Nguồn cung cấp: 9V IEC 6LR61
- Kích thước (không có cảm biến): 130 x 40 x 25 mm
- Trọng lượng: 100 g

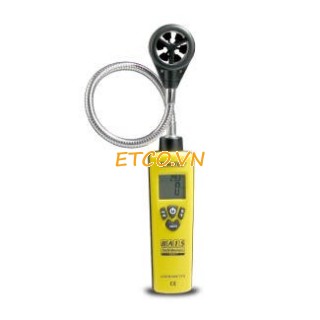

BA15 Flexible Anemometer
Problems regarding air speed, air temperature and air volume measurement are a thing of the past with the impeller anemometer.
BA15 Flexible Anemometer
BA15 Flexible Anemometer - Ansicht 1 BA15 Flexible Anemometer - Ansicht 2
Choose bundle and save money
The mobile device is ready for immediate operation and displays the measured values clearly and discernibly on a large, backlit screen. In addition to the normal values, the device can display the minimum and the maximum value as well as the value that has just been measured at that particular point in time.
The BA15’s flexible, 40 cm long, swan-like neck makes it easy to carry out measurements in places that are normally hard to reach or other places like distant supply of discharge ducts, thus making it ideal for heating, sanitary and climate fitters when calibrating discharge grilles, canals and swirl ducts.
The semi-professional BA15 is ideal for hobby sportsmen to determine wind speed and ideal for use in the home for carrying out performance checks on electrical appliances as well as air conditioning units and cooling fans in the EDP sector.
The auto power off function which switches the device off after 15 minutes of inactivity means that flat or exhausted batteries are now a thing of the past. The clearly-structured function keys allow the meter to be used with only one hand.
Benefits in practice:
Quick and easy air flow, air temperature, air volume (CMM) measurement
Excelllent value for money
Minimum, maximum value / Hold function
Semi-flexible, 40 cm Swan neck sensor
Backlit display
Auto power off
Technical Data:
Measuring range velocity: 1 – 30 m/s, 196 – 5,900 ft/min, 3.6 – 108.0 km/h
Measuring range air flow rate: 0 – 999.9 ft³/min (CFM)
Measuring range temperature: -10 to 60 °C (14 to 140 °F)
Accuracy velocity: ±3% ±0.20 m/s, ±3% ±40 ft/min, ±3% ±0.8 km/h
Accuracy temperature: ±1.5 °C (±3.0 °F)
Power supply: 9V IEC 6LR61
Dimensions (without sensor): 130 x 40 x 25 mm
Weight: 100 g
