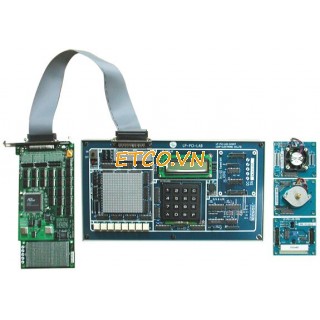

Bộ thực hành giao tiếp PCI Leaptronix LP-PCI-LAB
Hãng sản xuất: Leaptronix
Model: LP-PCI-LAB
Xuất xứ: Đài loan
Bảo hành: 12 tháng
Thông số kỹ thuật: Bộ thực hành giao tiếp PCI Leaptronix LP-PCI-LAB
+ Kích thước: 28cm x 17cm x 10cm
+ Trọng lượng: 1.5Kg
+ Phần cứng tiêu chuẩn: tương thích PCI version 2.1 Interface
+ Bộ logic đầu vào
* 8 nút nhấn
* Nút nhấn ma trận 4x4
- Bộ đầu ra
* Led ma trận 16 x 16
* 6 led 7 vạch
* Màn hình LCD 16x2
* Còi ra
+ Bộ tuyến tính
* 1 bộ A/D vào 8 bít
* 2 bộ D/A ra 8 bit
+ Bộ mở rộng
* Đầu nối 10 x 2 chân 2.0mm
* Đầu nối:12 x 2 chân 2.0mm
Phụ kiện kèm theo:
Bo mạch chính, cáp 68 chân, cạc giao tiếp LP-PCI-IO
Chọn mua thêm:
- Modul động cơ bước
- Modul quạt
- Modul nhiệt độ
UNIVERSAL PCI DEVELOPMENT SYSTEM LP-PCI-LAB
Universal PCI Development System
Introduction
Because of the widely used PCI application, high speed data acquisition on systems can be acquired. It has replaced ISA interface entirely. In order to meet the trend of PCI interface development, PCI-LAB especially is designed universally for PCI system, which supports engineers and education field usages to understand PCI within the shortest period. The PCI-LAB includes the external platform structure which is able to combine several learning units.
Furthermore,there are many suitable teaching materials written by knowledgeable professors, for users to learn how to control I/O with PCI interface within the shortest period.
Features
External platform structure: From the practice of textbooks and tools, users are able to learn quickly in controlling I/O under Windows/DOS through PCI interface card. Users can develop and learn PCI I/O control, furthermore experimenting with C or VB language.
Outstanding expansionary: External modules include motor, fan, and temperature sensor. Each module can be experimented separately.
The system contains two main units:
One is LP-PCI-IO interface card and the other is LP-PCI-LAB experiment platform.
Platform design:
Provide all experimental units and doesn't require for welding or soldering any extra wires. Strong and durable structure fits for educational and professional training institutes.
LP-PCI-IO is a standard PCI interface card: It’s a formal industrial control card meticulously designed by LEAP. It can be used to develop special subjects or researches. And can be applied to experiments on various PCI peripherals.
Specification
Dimension: 28cm x 17cm x 10cm
Weight: 1.5Kg
Operating Altitude: up to 5000m
Operating Humidity: 90％ (non-condensing)
Temperature: +5℃ ~ +45℃
Other Specifications
Hardware Standard: Compatible with PCI version 2.1 Interface
Logic Input Unit:
Logical input keypad x 8
4 x 4 numeral matrix keypad x 1
Output Unit:
16 x 16 dot-matrix LED display x 1
6 digitals 7 segments display x 1
16 x 2 character LCD display x 1
Buzzer output x 1
Linear Unit:
1 set 8bits A/D input
2 sets 8bits D/A output
Extend Unit:
10 x 2 Pin 2.0mm Connector x 1
12 x 2 Pin 2.0mm Connector x 1
Standard Accessories
Main unit x 1
68-pin cable x 1
LP-PCI-IO interface card x 1
Optional Accessories
Step Motor extension module
Direct Fan extension module
Temperature Induction extension module
Optional Adapter
Step Motor extension module:
Quar-phases 12V step motor
Step motor position control
Step motor speed control
Direct Fan extension module:
12V direct fan
Fan motor increase/decrease speed control
Temperature Induction extension module:
Temperature induction circuit x 1
LP-PC1-10 Interface Card:
Standard PCI Interface Card
48 Pin two-way I/O
32+16bits I/O data width
