Máy đo TDR (Máy xác định vị trí lỗi cáp) RapidTrace 1100
Hãng sản xuất: VONAQ - England
Xuất xứ: England
Bảo hành: 12 tháng
Thông số kỹ thuật: Máy đo TDR (Máy xác định vị trí lỗi cáp) RapidTrace 1100

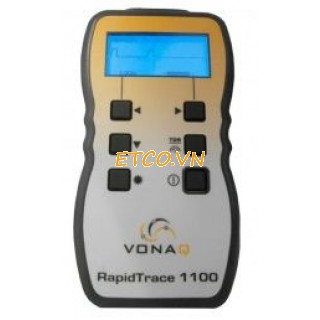

VONAQ RapidTrace 1100 Graphical Handheld TDR Cable Fault Locator Details
This cable fault locator is used to accurately test both long and short distance cables from 0.5m to 3km. An upgraded version of this tester - the 1200 - can test up to a distance of 6km.
When used this device is used for accurate, efficient and rapid testing of CAT3-6, twisted pair, twin and earth or any metallic cabling fault location. It also comes with selectable impedance and the tester uses pre-determined gain and pulse width to make operation as simple as possible.
An integrated tone generator is built into the RapidTrace 1100 to allow users to carry out pair tracing and identification.
VONAQ RapidTrace 1100 Handheld TDR Cable Fault Locator Key Features
Measurement range from 0.5 to 3km
Selectable impedance - 25, 50, 75 and 100Ω
Suitable for use on CAT3-6, twisted pair, twin and earth
Pre-determined gain and pulse width
Built-in tone generator
Handheld, easy-to-use design with just six control buttons
Full List of Products Included
VONAQ RapidTrace 1100 Handheld TDR Cable Fault Locator
1 x Banana Plug to Croc Clips Lead
1 x User Guide CD
4 x AA Batteries
1 x Weatherproof Carrying Case
