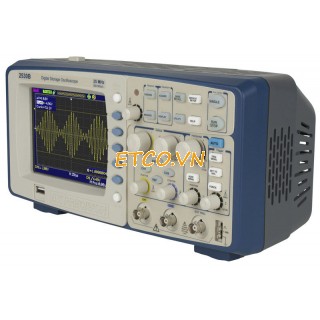

Máy hiện sóng số BK Precision 2530B (25Mhz, 2CH, 500 MSa/s)
THÔNG SỐ KỸ THUẬT:
Hãng sản xuất: BK Precision - USA
Model: 2530B
Băng tần: 25 MHz
Tốc độ lấy mẫu: 1 kênh 500 MSa/s, 2 kênh 250 MSa/s
Số kênh: 2
Bộ nhớ dài: Max 32,000 points
Độ phân giải: 8 bit
Độ nhạy trục dọc: 2 mV/div -10 V/div(1-2-5 order)
trục ngang: 25 ns/DIV - 50 s/DIV
Điện áp vào lớn nhất: 400 V (DC+AC pk-pk, 1 MΩ, X10), CAT I
Giao tiếp I/O :USB, RS-232
Trigger: Edge, Pulse Width, Video*, Slope, Alternating
Toán học: Add, Subtract, Multiply , Divide, FFT
FFT: Hanning, Hamming, Blackman, Rectangular
Đo lường: Amplitude, Average, Base, Burst Width, Cyclic RMS, + Duty Cycle, - Duty Cycle, Fall Time, Frequency , Max, Mean,
Min, Rise Overshoot, Fall Overshoot, Rise Preshoot, Fall Preshoot, Peak-Peak, Period, Phase, Rise Time, RMS, Top, + Width, - Width, plus 8 advanced parameters for edge to edge timing measurements
Màn hình: 5.7 in. Color TFT, độ phân giải 320 x 240, 64K màu
Nguồn: 100-240 VAC
Kích thước: 305 x 160 x 133 mm
Trọng lượng: 2.3 kg
Phụ kiện: HDSD, 2 dây đo, 10: 1, dây nguồn, Cáp USB, phần mềm
The 2530B Digital Storage Oscilloscope delivers essential features and reliable performance at a price you can afford. Analog style knobs and controls combined with a smart Auto set function make this oscilloscope easy to use. Advanced triggering, automatic measurements, and FFT functions provide you with many options to debug your circuits. Educators can appreciate the ability to disable the Auto button that would automatically setup the scope to display a signal, requiring the user to learn how to set up scope parameters manually. Additionally, the instrument comes with PC software that lets you easily capture, analyze, and document waveforms and measurement results. The 2530B is an ideal education and training tool, and also well-suited for applications in service and repair.
25 MHz bandwidth, 500MSa/s sample rate
5.7" color display
One touch automatic setup for ease of use (Auto)
Long waveform memory up to 32,000 point record length for each channel
32 automatic measurements
FFT plus four additional math functions
Extensive trigger capabilities including pulse width and line-selectable video trigger
Save/recall setup and waveform data
Transfer waveform data, screen shots, and measurement results to a Windows PC via USB port. Analyze measurement results "off-line" or in real-time
