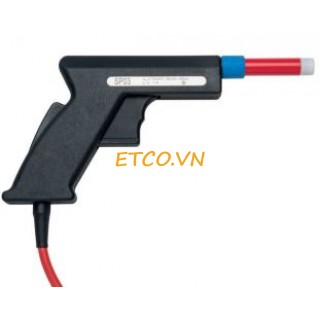

Súng thử cao áp SP03 (High voltage test probe SP03)
Hãng sản xuất: SPS electronic
Model: SP03
Xuất xứ: Đức
Bảo hành: 12 tháng
Thông số kỹ thuật: Súng thử cao áp SP03 (High voltage test probe SP03)
Điện áp thử lớn nhất:
- AC: 8,000 V AC
- DC: 10,000 V DC
- Chiều dài cáp: 2m
High voltage test probe SP03
Description:
- The most important method of all safety tests is the high voltage test. Very often these tests are performed manually.
- Then the safety test probe is the link between human, high voltage tester and DUT.
- It is to safely contact the high voltage, however protect on the other hand the human being against life-endangering contact with high voltage.
- The safety test probes SP 02 and SP 03 completely meet these requirements.
- Additionally special attention has been paid to the ergonomics and the handling of the probe.
- Especially with daily hundreds of tests this aspect plays a crucial role in testing conveniently test safety inclusive.
Max. operating voltage
- AC: 8,000 V AC
- DC: 10,000 V DC
Test voltage
- Contour / connection: 25,000 V DC
- Connection / start switch: 25,000 V DC
Safety: Double control
Setup
- Teflon sleeve: SP 02 / SP 03
- Tungsten tip: SP 02 / SP 03
- Multilayer safety cable: SP 02 / SP 03
- Impact-resistant plastic housing: SP 02 / SP 03
Connection
- High voltage: Plug ST 02
- Start switch: Jack plug: ST 01
Versions
- Test probe with a 2 m (6.6 ft.) connection cable and plug: SP 02
- Test probe with a 2 m (6.6 ft.) connection cable, plug and start switch: SP 03
- High voltage plug with a 2 m (6.6 ft.) high voltage cable: ST 02
- High voltage socket: BU 02
Cable lengths: (SP 02 / SP 03 / ST 02)
- 2 meters (6.6 ft.): Standard
- 5 meters (16.4 ft.): - 5
- 10 meters (32.8 ft.): - 10
- 15 meters (49.2 ft.): - 15
