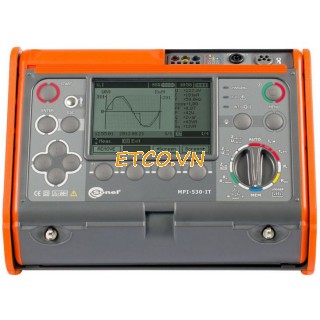

Thiết bị đo cài đặt điện đa chức năng Sonel MPI-530-IT
Hãng sản xuất: Sonel
Xuất xứ: Balan-EU
Model: MPI-530-IT
Thông số kỹ thuật: Thiết bị đo cài đặt điện đa chức năng Sonel MPI-530-IT
Multifunction electrical instalations meter
Description
MPI-530-IT meter is a multi-functional instrument for electric shock protection measurements including the option of various methods for measuring earthing and earthing resistance. Sonel MPI-530-IT allows testing of residual current devices (RCD), types AC, A, F and B also in IT network. Additionally the meter enables its user to analyse power supply parameters, records and displays them on its screen. The instrument automatically measures the insulation resistance in a socket and in 3 -, 4 - and 5-wire cables when used with AutoISO-1000C adapter. Measurement results may be continuously verified, depending on user’s demand or according to binding regulations. Memory of the instrument may store tens of thousands of measurements allowing users to store them in a structure of a protocol and describe individual measurement points.
Specifications
Measurement of short circuit loop impedance ZL-PE, ZL-N, ZL-L
Test current: 23/40 A; measuring range acc. to IEC 61557: 0,13...1999,9 Ω
(for 1.2 m test lead):
Display range | Resolution | Accuracy |
0,000...19,999 Ω | 0,001 Ω | ±(5% m.v. + 0,03 Ω) |
20,00...199,99 Ω | 0,01 Ω | ±(5% m.v. +0,3 Ω) |
200,0...1999,9 Ω | 0,1 Ω | ±(5% m.v. + 3 Ω) |
- Rated voltage: 95...270 V (for ZL-PE and ZL-N) and 95...440 V (for ZL-L)
- Frequency: 45...65 Hz;
Measurement of short circuit loop impedance ZL-PE in RCD mode
Test current: 15 mA, measuring range acc. to IEC 61557: 0,50...1999 Ω
Display range | Resolution | Accuracy |
0,00...19,99 Ω | 0,01 Ω | ±(6% w.m. + 10 digits) |
20,0...199,9 Ω | 0,1 Ω | ±(6% w.m. + 5 digits) |
200...1999 Ω | 1 Ω |
- Rated voltage: 95...270 V
- Frequency: 45...65 Hz
Measurement of earth resistance RE with the 3p and 4p method
Measuring range acc. to IEC 61557 - 5:
- 0,50 Ω…1,99 kΩ for test voltage 50 V
- 0,56 Ω…1,99 kΩ for test voltage 25 V
Display range | Resolution | Accuracy |
0,00...9,99 Ω | 0,01 Ω | ±(2% m.v. + 4 digits) |
10,0...99,9 Ω | 0,1 Ω | ±(2% m.v.. + 3 digits) |
100...999 Ω | 1 Ω | |
1,00...1,99 kΩ | 0,01 kΩ |
- test voltage: 25 V or 50 V rms
- test current: 20 mA, sinusoidal rms 125 Hz (for fn=50 Hz) and 150 Hz (for fn=60 Hz)
- measurement blocked at interference voltage UN > 24 V
- maximum measured interference voltage Unmax= 100 V
- maximum resistance of auxiliary earth electrodes 50 kΩ
Selective earth resistance measurement with clamp (3p + clamp)
Display range | Resolution | Accuracy |
0,00...9,99 Ω | 0,01 Ω | ±(8% m.v. + 4 digits) |
10,0...99,9 Ω | 0,1 Ω | |
100...999 Ω | 1 Ω | |
1,00...1,99 kΩ | 0,01 kΩ |
- measurement with additional current clamp
- interference current measuring range: up to 9,99 A
Selective earth measurement with two clamps
Display range | Resolution | Accuracy |
0,00...9,99 Ω | 0,01 Ω | ±(10% m.v. + 4 digits) |
10,0...99,9 Ω | 0,1 Ω | |
100...999 Ω | ±(20% m.v. + 4 digits) |
- measurement with transmitting and receiving clamps
- interference current measuring range: up to 9,99 A
Soil resistivity mesurement (ρ)
Display range | Resolution | Accuracy |
0,0...99,9 Ωm | 0,1 Ωm | Depending on accuracy of RE measurement |
100...999 Ωm | 1 Ωm | |
1,00...9,99 Ωm | 0,01 kΩm | |
10,0...99,9 kΩm | 0,1 kΩm |
- measurement with Wenner’s method
- distance settable in metres or feet
- distance range: 1...30 m (1...90 feet)
Phase sequence indication
- Phase sequence indication: conforming, non-conforming
- Mains voltage range UL-L: 100...440 V (45...65 Hz)
- Display of phase-to-phase voltage values
Measurements of RCD parameters (voltage range 95...270 V):
RCD tripping test and measurement of tripping time tA (for tA measurement function)
RCD type | Current | Range | Resolution | Accuracy |
General and short-time delay |
0,5*IΔn | 0...300 ms |
1 ms |
± (2% m.v. + 2 digits) (for RCD with IΔn=10 mA |
1*IΔn | ||||
2*IΔn | 0...150 ms | |||
5*IΔn | 0...40 ms | |||
Selective | 0,5*IΔn | 0...500 ms | ||
1*IΔn | ||||
2*IΔn | 0...200 ms | |||
5*IΔn | 0...150 ms |
- accuracy of residual current application: for 0,5*IΔn:-8...0% for 1*IΔn, 2*IΔn, 5*IΔn: 0...8%
Measurement of RCD tripping current IA for sinusoidal residual current (AC type)
Rated current |
Meas. range | Resolution | Test current | Accuracy |
10 mA | 3,3...10,0 mA | 0,1 mA | 0,3 x IΔ..1,0 x IΔ | ± 5%IΔn |
30 mA | 9,0...30,0 mA | |||
100 mA | 33...100 mA | 1 mA | ||
300 mA | 90...300 mA | |||
500 mA | 150...500 mA | |||
1000 mA | 330...1000 mA |
- The measurement can be started from positive or negative half-period of forced leakage current
Measurement of RCD tripping current IA for unidirectional residual current and unidirectional
with the 6 mA DC bias (type A)
Rated current |
Meas. range | Resolution | Test current | Accuracy |
10 mA | 3,5...20,0 mA | 0,1 mA | 0,35 x IΔn..2,0 x IΔn | ±10%IΔn |
30 mA | 10,5...42,0 mA | 0,35 x IΔn..1,4 x IΔn | ||
100 mA | 35,0...140 mA | 1 mA | ||
300 mA | 105...420 mA | |||
500 mA | 175...700 mA |
Measurement for positive or negative half-periods of forced leakage current
Measurement of RCD tripping current IA for direct residual current (type B)
Rated current |
Meas. range | Resolution | Test current | Accuracy |
10 mA | 2,0...20,0 mA | 0,1 mA | 0,4 x IΔn..2,0 x IΔn | ±10%IΔn |
30 mA | 6...60 mA | 1 mA | ||
100 mA | 20...200 mA | |||
300 mA | 60...600 mA | |||
500 mA | 100...1000 mA |
- Measurement for positive or negative half-periods of forced leakage current
- IΔn - rated residual current
Insulation resistance measurements
Measuring range acc. to IEC 61557 - 2:
- for UN = 50 V: 50 kΩ...250 MΩ
- for UN = 100 V: 100 kΩ...500 MΩ
- for UN = 250 V: 250 kΩ...999 MΩ
- for UN = 500 V: 500 kΩ...2 GΩ
- for UN = 1000 V: 1,000 MΩ...9,99 GΩ
Display range*) | Resolution | Accuracy |
0...1999 kΩ | 1 kΩ | ±(3% m.v. + 8 digits) |
2,00...19,99 MΩ | 0,01 MΩ | |
20,0...199,9 MΩ | 0,1 MΩ | |
200...999 MΩ | 1 MΩ | |
1,00...9,99 MΩ | 0,01 GΩ | ±(4% m.v. + 6 digits) |
- *) not greater than measuring range for given voltage
Low-voltage measurement of resistance and circuit continuity
Measurement of protective conductor continuity with the ±200 mA current
Range | Resolution | Accuracy |
0,00...19,99 Ω | 0,01 Ω | ±(2% m.v. + 3 digits) |
20,0...199,9 Ω | 0,1 Ω | |
200...400 Ω | 1 Ω |
- voltage on open terminals: 4…9 V
- output current at R < 2 Ω: min. 200 mA
- autocalibration of test leads
- measurements for both current polarities
Illuminance measurement
Range | Resolution | Accuracy |
0,1...99,9 lx | 0,1 lx | ±(5% m.v. + 2 digits) |
100...999 lx | 1 lx | |
1,00...9,99 klx | 0,01 lx | |
10,0...19,9 klx | 0,1 lx |
- measurement in luxes (lx) or feet-candles (fc)
ANALYSIS AND RECORDING OF SINGLE-PHASE SYSTEM
- Voltage measurement ULN: 0...500 V
- Frequency range of measured voltages: 45,0...65,0 Hz
- Frequency measurement range for 50...500 V voltages: 45,0...65,0 Hz (basic uncertainty max. ± 0,1% m.v. + 1 digit)
- cosφ measurement: 0,00...1,00 (resolution 0,01)
- Measurement and recording in single-phase system
Current measurement (True RMS)
Clamps | Range | Resolution | Accuracy* |
C-3, C-6 | 0,0...99,9 mA | 0,1 mA | ±(5% m.v. + 3 digits) |
100...999 mA | 1 mA | ||
C-3,C-6 F-1, F-2, F-3 |
1,00...9,99 A | 0,01 A | ±(5% m.v. + 5 digits) (C-3, C-6) ±(0,1% In + 2 digits) (F-1, F-2, F-3) |
10,0...99,9 A | 0,1 A | ||
100...999 A | 1 A | ||
F-1, F-2, F-3 | 1,00...3,00 kA | 0,01 kA |
- * the accuracy of current clamps must also be taken into account
Measurement of active power P, reactive power Q, apparent power S and cosφ
Range [W], [VA], [var] |
Resolution [W], [VA], [var] |
Accuracy* |
0...999 | 1 | ±(7% m.v. + 3 digits) |
1,00...9,99 k | 0,01 k | |
10,0...99,9 k | 0,1 k | ±(7% m.v. + 5 digits) |
100...999 k | 1 k | |
1,00...1,50 M | 0,01 M |
- voltage range: 0…500 V
- current range: 0...1000 A (3000 A)
- mains rated frequency fn: 50 Hz, 60 Hz
Voltage harmonics measurement
Range | Resolution | Nr harm. | Accuracy |
0,0...500 V | 0,1 (1*) V | 1,2,...15 | ±(5% m.v. + 3 digits) |
16,...40 | ±(5% m.v. + 10 digits) |
- in addition display of h02...h40 values as percent of h01 (up to 999%)
- *) from 300 V to 500 V
THD (in relation to the 1 st harmonics)
Resolution | Accuracy | ||
THD-F voltage (h = 2…40) |
0,0…999,9% for URMS ≥ 1% Unom |
0,1% | ±5% |
THD-F current (h = 2...40) |
0,0…999,9% for IRMS ≥ 1% Inom |
0,1% | ±5% |
NOTE: “m.v.” means “ measured value”
The instruments conforms to:
- EN 61010 - 1 (general safety requirements)
- EN 61010 - 031 (detailed safety requirements)
- EN 61326 (electromagnetic compatibility)
- EN 61557 - 10 (requirements for combined instruments)
- IEC 60364 - 6-61 / HD 60364 - 6 (measurements - verification)
- IEC 60364 - 4-41 / HD 60364 - 4-41 (measurements – protection against electric shock)
- EN 04700 (measurements – acceptance tests)
- EN 12464 (lighting of work places)
- DIN VDE 0100
- DIN VDE 0413
- BS 7671
