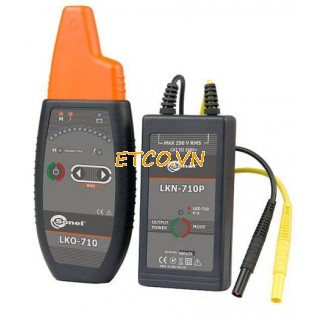

Thiết bị dò dây và cáp điện Sonel LKZ-710

• Detection of wires (live or using external power source):
  - detecting of wires in ceilings, walls and floors,
  - locating power points and switches in buildings,
  - locating short circuits between leads (using external power source),
  - tracing wires in metal ducts.
• Identification of fuses on the distribution board.
• Tracing conductive water and heating pipelines (using external power source).
• Non-contact detection of live wires.
• Signaling of transmitter and receiver opeartion by LED and sound.
  - indication of signal level on dotted light line.
• Features:
  - operation in wide range of rated voltage, 12V DC (24V AC)...250V,
  - two modes of transmitter amplification,
  - adjustment of receiver sensitivity level,
  - modes of wire tracer operation - current (detection of magnetic field),
  - transmitter powered from tested installation.

Electric security:
- type of insulation: double, according to  EN 61010-1
- measurement category: CAT III 300V acc. to EN 61010-1
- transmitter’s protection class acc. to EN 60529: IP40
- receiver’s protection class acc. to EN 60529: IP40

Other technical data:
- transmitter’s power supply: external source AC min. 24V or DC min. 12V
- transmitter’s max working voltage: 250Vrms (353Vampl)
- transmitter’s dimensions: 128 x 66 x 28 mm
- transmitter’s weight: approx. 300 g
- detector’s max range: 60cm
- non-contact neon max range:    20cm (in air), 3cm (in concrete)
- receiver’s power supply: battery 9V 6LR61 alkaline
- receiver’s dimensions: 210 x 82 x 24 mm
- receiver’s weight: approx. 200 g

Rated operational conditions:
- operating temperature: -20...+50°C
