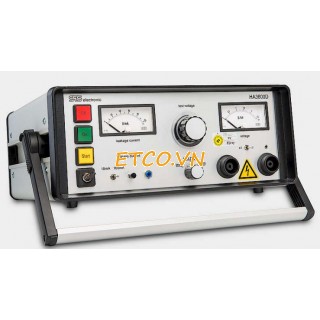

Thiết bị thử cao áp AC SPS HA3600D, 5000V, 100mA (High voltage tester HA 3600D - Hipot tester)
Hãng sản xuất: SPS Electronic
Model: HA3600D
Xuất xứ: Đức
Bảo hành: 12 tháng
Thông số kỹ thuật: Thiết bị thử cao áp AC SPS HA3600D, 5000V, 100mA (High voltage tester HA 3600D - Hipot tester)
Dải điện áp thử: 0-2500V và 0-5000V
Dòng ra: 0 - 100 mA
Thời gia tạo áp: 1-60s
Kích thước (HxWxD): 159 x 360 x 335 mm
Khối lượng: 18.5 kg
High voltage test device HA 3600D (Hipot tester)
Description:
- High voltage tester with a fully electronic high voltage source up to 500 VA power.
- This performance and a short circuit current > 200 mA is required by global standards and is met by these devices.
- The in Europe required standards for work station safety at test stations of more than 1,000 V such as safety control panels and potential-free high voltage are also met. Thereby a global use in the test bay, in production and in the laboratory is possible.
High voltage test AC:
- Voltage range 2,500 V: 0 up to 2,500 V
- Voltage range: 5,000 V: 0 up to 5,000 V
- Current range: 0 up to 100 mA
- Short circuit current: > 200 mA
Operating modes
- Testing (t): Testing with time base up to 60 s
- Testing: Static testing
- Burn: Fault finding with 150 mA
General data
- Safety power panel: Built-in
- Threshold values: Release current adjustable from 10 to 100%
- Voltage: Manually selectable via control knob
- Error message: Visual and audible
- Measurement voltage: On the primary side
- Measurement current: On the secondary side
- Dimensions (HxWxD) and weight: 159 x 360 x 335 mm / approx. 18.5 kg
- Mains supply: 230 V / 50 Hz, Option: 115 V / 60 Hz
Interfaces
- Warning lamp set: External connection 230 V
- Foot switch / remote control: Potential-free contact
Measuring instruments
- Voltage: Analogue, class 1.5
- Current Analogue, class 1.5
