Bộ thực hành MCS-51 / AVR / PIC Leaptronix uP-2
Hãng sản xuất: Leaptronix
Model: uP-2
Xuất xứ: Đài loan
Bảo hành: 12 tháng
Thông số kỹ thuật: Bộ thực hành MCS-51 / AVR / PIC Leaptronix uP-2
+ Mạch cắm IC 20 & 40 chân họ MCS-51/AVR (chưa bao gồm chíp)
+ Mạch cắm IC 20 & 40 chân họ PIC16F8XX IC (chưa bao gồm chíp)
+ Mạch: USB
+ Mạch: RS-232
+ Cổng máy in
+ Mạch cắm mở rộng chương trình EPROM/FLASH, lên tới 512K x 8bits (chưa bao gồm chip)
+ Mạch cắm mở rộng SRAM, lên tới 12K x 8bits (chưa bao gồm Chip)
+ Mạch giải mã IO
+ Led đỏ, vàng xanh
+ 6 led 7 vạch
+ 4 nút nhấn đơn
+ Công tắc DIPP
+ Led ma trân 16x16 2 màu
+ Hệ thống nguồn cung cấp
+ Mạch A/D ADC0804
+ Mạch D/A AD7528
+ Mạch cắm LCD mở rộng (chưa bao gồm LCD).
+ Mạch LM324
+ Mạch Relay x 4
+ Mạch Driver cho động cơ bước ULN2003
+ Mạch mở rộng IO 82C55
+ Còi báo
+ MạchvEEPROM 93C46 & 24C02
+ Bàn phím ma trận x 16 (4x4)
+ Mạch Photo
Cung cấp kèm theo: Mạch chính, 4 cáp 8 chân, 4 cáp 4 chân, 8 cáp 2 chân, 1 cáp USB, 1 CD HDSD, Ví dụ), 1 adapter nguồn AC110V/DC9V/500mA ), 1 IC W78E052DDG )
Chọn mua thêm modul thực hành:
- Mạch debug: WICE-52 MCS-51
- Modul mở rộng động cơ, quạt và cảm biến: 3-in-1 Module Kit
- Modul động cơ bước
- Modul quạt

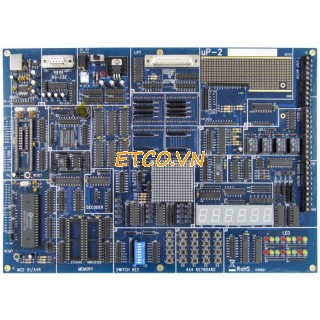

MCU EXPERIMENTAL BOARD uP-2
MCS-51 / AVR / PIC MCU Experimental Board
Introduction
The uP-2 is included MCS-51, AVR and PIC which are the top 3 popular MCUs on the market. The platform is flexible design. Each part of the experiments has their own circuit block. You can combine the experimental example or designated topic circuit for your own subject. The uP-2 is the best platform for learning MCU.
Features
Applied subjects are included MCS-5X/AVR/PIC16F8XX.
Available 20 or 40 pin MUC.
Compatible with many brands of emulators.
System is designed on stand-alone CPU, interface separately.
Provide 26 circuit units.
All of the circuits are able to combined with cable wires by users.
No need to Solder, saving time.
385 holes on the board which provide users for extended application or subjective experiments.
The Power is provided two kinds of input, 9V adaptor or DC 9V.
Circuit Unit
20 & 40 pin MCS-51/AVR IC socket
20 & 40 pin PIC16F8XX IC socket
USB
RS-232
Printer port
EPROM/FLASH socket for program extension, up to 512K x 8bits
SRAM socket for program extension, up to 512K x 8bits
IO decoder
Red/yellow/green LED
6 digits 7 segment display
Stand-alone push button x 4
DIP switches
16x16 two colors dot matrix LED
System power supply
A/D ADC0804 IC
D/A AD7528 IC
LCD socket extension.
OP LM324 IC
Relay x 4
Step Motor driver ULN2003
82C55 IO extension
Buzzer output
EEPROM 93C46 & 24C02
Matrix keypad circuit x 16(4x4)
385 hole universal board
Experimental Contents
LED
Push button
Single and dual Traffic light control
Neon lamp
Extended program memory
Extended data memory
Extended EEPROM recode data
16x16 double color dot matrix display, Character/graph
6 digits dynamic 7 segment display LCD circuit (LCD is option)
Step motor driver circuit (need connect to external motor)
Relay control 4x4 matrix keypad scan circuit
Press button circuit
Touch switch read and set
Timer
Password key
Electronic piano
Counter
A/D and D/A conversion
8255 I/O extension
Multi I/O decode
Serial Peripheral Interface
Printer interface
USB interface
USB transfer to RS-232
OPTO input & output
Specification
Operating System: Windows 8 32/64bits, Windows 7 32/64bits, Windows VISTA 32/64bits, Windows XP 32/64bits
Communication: Printer / RS-232 / USB Port
Power: 9V DC Adaptor / 9V DC Extend Power Pin
Dimension: 316 mm x 222mm x 2.1cm
Weight: 700g
Standard Accessories
Main Board x1
8 Pin Cable x4
4 Pin Cable x4
2 Pin Cable x8
USB Cable x1
CD (included user’s manual, Boot codes, examples) x1
AC110V/DC9V/500mA Power Adaptor................x1
W78E052DDG IC............x1
