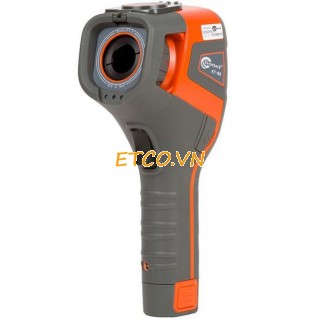

Camera hồng ngoại Sonel KT-80 (0°C...+250°C)
Hãng sản xuất: Sonel
Xuất xứ: Balan-EU
Model: KT-80
Thông số kỹ thuật: Camera hồng ngoại Sonel KT-80 (0°C...+250°C)
Thermal Imager
Description
Sonel KT series is an efficient, budget-friendly and professional infrared camera.
This robust and very handy high-tech system thanks to its intuitively learnable handling and user-friendly single hand operation, which makes in an ideal tool for troubleshooting electrical installations, mechanical components, buildings, process equipment, HVAC/R equipment and others.
Features and benefits of Sonel KT:
- Friendly UI, easy to use without training,
- Affordable as entry level diagnostic tool,
- Removable large capacity Li-ion battery,
- 4 hour working time,
- 3,5'’ large screen with no image cropping, high brightness screen to show image with no detailed information lost even outdoor or in highlight,
- Rugged and compact design, metal internal structure,
- Standard Micro USB interface for data transmission and charging,
- Wi-Fi connection (Optional).
Applications:
- Electric inspection and diagnosis,
- Building inspection and diagnosis,
- Mechanical equipment maintenance,
- Manufacturing process service,
- Petrochemical industry maintenance.
Specifications
| SPECIFICATIONS KT-80 | |
| Lens | 8 mm |
| Detector type | <80 x 80 |
| Spectral range | 8...14 μm |
| Focus | Manual |
| Focal length / FOV | 8 mm / 18.5°X 18.5° |
| Thermal sensitivity | < 0.08°C @30°C |
| Digital zoom | - |
| Palette | 4 |
| Interface | micro USB |
| Display specifications | |
| Display | Hi-brightness LCD 3.5'’ LCD (resolution 320 x 240 px) Triple brightness adjustable |
| Frame | 50 Hz |
| Temperature measurement parameters | |
| Accuracy | ±2°C or ±2@ |
| Temp. range | 0°C...+250°C |
| Measurement parameter calibration | Emissivity adjustable (0.01-1.00) |
| Measurement functions | |
| Point | Center point temperature |
| Max | Area auto tracking |
| Min | Area auto tracking |
| Format file / storage | JPG / removable SD memory card |
| Power system | |
| Battery type | 3,7 V 4200 mAh Li-Ion |
| Charging system | In camera charging or external battery charger (option) |
| Power adapter | 110/230 VAC,50/60 Hz |
| Battery operating time | up to 4 hours |
| Other technical data | |
| Enclosure protection | IP43 |
| Dimensions | 103 mm x 98 mm x 258 mm |
| Weight | 755 g |
| Operating temperature | -10°C...50°C |
| Storage temperature | -20°C...60°C |
| Humidity | 10% to 95 without condensation |
| Shock | 25G, IEC 68-2-29 |
| Vibration | 2G, IEC 68-2-6 |
