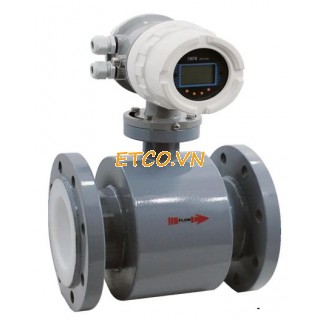

Lưu lượng kế điện từ MTLD Series
Hãng sản xuất: Dalian Metern
Xuất xứ: China
Bảo hành: 12 tháng
Thông số kỹ thuật: Lưu lượng kế điện từ MTLD Series
Features
No moving parts; Virtually no pressure drop;
Minimal maintenance
Wide range of nominal diameters;
Broad selection of lining and electrode materials
Specifications
| Power Supply | 110-240Vac (Optional: 24 Vdc) |
| Power Consumption | 10W |
| Accuracy |
± 0.5% accuracy of rate from 0.3-10 m/s
± 1.0% accuracy of rate from 0.1-0.3 m/s
|
| Repeatability | 0.2% |
| Minimum Fluid Conductivity | 5.0 micromhos/cm |
| Flow Direction | Unidirectional or bidirectional, 2 separate totalizers (programmable) |
| Analog Output | 4-20mA, 750ohms Max Load |
| Output Frequency |
Scaled Pulse output,
(open collector) Max 5Khz
|
| Noise Damping | Programmable |
| Pulse Width | Programmable up to 500ms |
| Zero-point Stability | Automatic correction |
| Ambient Temperature | -4 to 140° F (-20 to 60° C) |
| Electrode Materials |
SS316L;
Optional: Titanium; Hastelloy Alloy C; Tantalum
|
| Liner Material | PTFE, FEP, Hard Rubber |
| Fluid Temperature |
PTFE: 120°C Standard (Customized: 180°C)
Rubber: 60°C
|
| Pressure Limits | 1.0 Mpa; Optional 1.6; 2.5; 4.0 Mpa |
| Coil Power | Pulsed DC |
| Pipe Spool Material | SS316 |
| Meter Housing Material | Carbon Steel welded or SS304 (Sanitary Connection) |
| Flange |
Carbon Steel - Standard (ISO 7005-1)
ANSI, DIN and JIS Flange Connections
Optional Stainless Steel Grounding Rings
|
