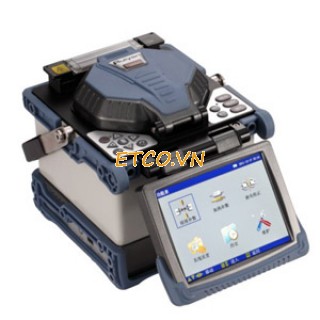

Máy hàn cáp quang Ruiyan RY-F600

Mã SP: RY-F600

Trạng thái: Còn hàng

Giá: 62.000.000 đ

Điểm nổi bật

Máy hàn cáp quang Juiyan F600-Thời gian hàn ngắn, Có chức năng lấy nét tự động, trọng lượng 2,4kg. Được nâng cấp phần mềm thông qua cổng nối USB

SL:

Điện thoại đặt hàng: 04-6687-1848/0982-055-781
Email: sale@etco.vn

Tính năng máy hàn cáp quang

Fiber core can be display clearlyDigital fusion splicer with automatic focus function
Single X or Y view and X & Y view simultaneously
Auto detect cleaved endface fault
Display fiber cleaved and offset angle
Display core and clad offset
5.1 inch TFT color LCD monitor with clear digital image display
USB & VGA interface
Software upgrade via USB interface

Thông số kỹ thuật máy hàn cáp quang

Model	RY-F600
Applicable fibers	SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655)
Fiber cleaved length	10 ~16mm (Coating diameter<250µm);16mm(Coating diameter250~1000µm)
Fiber diameter	Cladding diameter:80 ~150µm , Coating diameter:100 ~1000µm
Auto focusing	Available
Fiber aligning method	Core aligning, clad aligning, manual aligning
Average splice loss	0.02dB (SM), 0.01dB (MM), 0.04dB (DS), 0.04dB( NZDS)
Splicing time	Typical 9 sec,with standard SM fiber
Heating time	Typical 36 sec
Applicable sleeves	60mm, 40mm and a series of micro sleeves
Tension test	2N(option)
Electrode life	5000
Battery capacity	Typical 400 cycles (splice and heat)
Monitor	5.1 inch TFT color monitor
Terminal	USB 1.1 and VGA , software upgrade via USB interface
Operating condition	0 ~ 5000m above sea level, 0 ~ 95%RH and -10~50^oCC, respectively, Max. wind velocity of 15m/s
Splicing mode	Auto ,normal
Fiber cleaved angle threshold set	0.1 ~ 10.0 ^oC , 0.1^oCstep
Power supply	Li-battery 11.8V , AC100-240V DC12.6V/5.0A
Dimension	L169W152H155mm
weight	2.4kg 2.9kg(battery)
