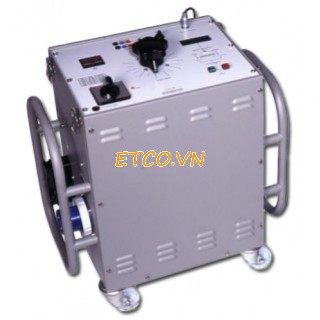

Máy tạo dòng điện PCU2 Mk5

Mã SP: PCU2 Mk5

Trạng thái: Còn hàng

Giá: 0 đ

Điểm nổi bật

Máy tạo dòng điện PCU2 Mk5

   Điện thoại đặt hàng: 04-6687-1848/0982-055-781

Máy tạo dòng điện PCU2 Mk5


T&R PCU2 mk5 Primary Current Injection Test System

The PCU2 Mk5 Primary Current Injection System is suited to commissioning and maintenance testing where very high currents are required. The PCU2 is ideal for all primary current injection tasks including testing under and over current relays, circuit breakers and CT ratio testing. The system consists of separate control and loading units for maximum flexibility. The control unit contains all control and metering circuitry and is linked to the loading unit by control and metering cables. The control unit is designed to be used with one of two loading units that provide a maximum output current of either 5000A or 6000A for 5 minutes or up to 10kA or 12kA on an intermittent basis. Each loading unit has two outputs which may be connected in series or parallel for maximum flexibility. For example, the LU6000 may be configured to either give a maximum current of 3000A at 6.6V or 6000A at 3.3V.

The control unit is rated at 20kVA and has digital metering. A memory facility is provided on the metering to hold the current reading when the output trips or is switched off. The current is automatically switched off when the device under test trips. A flexible timing system is provided, allowing timing tests to be carried out to a resolution of 1ms. Selection for normally open or normally closed contacts is automatic, and the status of the contacts is shown on the front panel. Timing modes are available to test under and overcurrent devices, reclosers, under and over voltage devices, current trips and circuit breakers. The control and loading units are each housed in tough steel cases fitted with castors and protective lifting handles. The loading units have a small plan area to allow them to be positioned as close as possible to the test object, minimising power requirements and maximising the available current.

T and R PCU2 Features:

  • 20kVA 5 minute output capability
  • Continuously variable output
  • Multi-function timing system
  • Digital true RMS memory ammeter
  • Bright LED displays
  • Automatic switch-off at end of test
  • Centralised control and metering
  • Separate control and loading units
  • Intermittent output up to 12kA
  • Continuous output up to 3kA
  • Low impedance, dual-range output



    Parallel mode Series mode
Range 1 Full scale 5000A 2500A
  Resolution 1A 1A
  Accuracy 0.6% rdg+6d 0.6% rdg+6d
  Current trip 5500A 2750A
Range 2 Full scale 10kA 5kA
  Resolution 0.01kA 0.01kA
  Accuracy 0.6% rdg+6d 0.6% rdg+6d
  Current trip 11000A 5500A

Loading Unit Output (LU5000)

  Continuous 5mins on/
15mins off
5secs 1sec
  Current Max kVA Current Max kVA Current Max kVA Current Max kVA
2500A 10 5000A 20 8000A 32 10000A 40
1250A 10 2500A 20 4000A 32 5000A 40

Loading Unit Output (LU6000)

  Continuous 5mins on/
15mins off
5secs 1sec
  Current Max kVA Current Max kVA Current Max kVA Current Max kVA
3000A 10 6000A 20 9600A 32 12000A 40


1500A 10 3000A 20 4800A 32 6000A 40
  • Timer resolution: 1ms
  • Timer full scale: 999.999s
  • Timer accuracy: ±0.01%rdg+2d, ±0.01%rdg+3d current operated mode
  • Contact O/C voltage: 24V
  • Contact S/C current: 100mA
  • VDC input range: 24-240V DC
  • Supply requirements: 230V, 49-61Hz, 1ph, 23kVA for 5mins, 46kVA for 1 second
  • Storage temperature: -20°C to 60°C
  • Operating temperature: 0°C to 45°C
  • Dimensions (PCU2 only): 660 x 400 x 740mm
  • Weight (PCU2 only): 115kg

Supplied Accessories

  • T&R PCU2 mk2 control unit
  • Spare fuse set
  • 5m loading unit power interconnection lead
  • 5m loading unit metering interconnection lead
  • 2m mains lead
  • Operating manual
