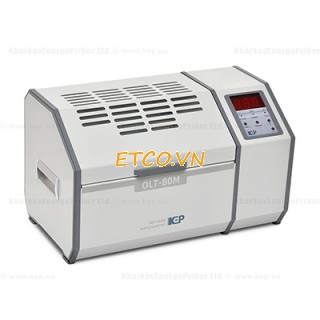

Máy thử điện áp đánh thủng dầu cách điện KEP OLT-80M (80kV)
Hãng sản xuất: KEP
Xuất xứ: Ukraine
Model: OLT-80M
Thông số kỹ thuật: Máy thử điện áp đánh thủng dầu cách điện KEP OLT-80M (80kV)
- Dùng để xác định điện áp đánh thủng của dầu cách điện máy biến áp và chất lỏng phù hợp tiêu chuẩn GOST 6581-75 và hầu hết các tiêu chuẩn quốc tế và quốc gia khác
- Đo điện áp đánh thủng lớn nhất kV rms: 80
- Độ phân dải điện áp, kV: 0.1
- Độ bất ổn đo lường, % of FS: 3
- Tốc độ tăng điện áp, kV/s: 2 ± 0.2
- Hộp thử IEC 60156, 400 ml, 1.0 kg
- Điện áp vào, V: 230 ± 10% (basic)
- Tần số, Hz:50 ± 1 (basic)
- Công suất tiêu thụVA: 100
- Kích thước (W × H × D), mm: 271 × 278 × 471
- Trọng lượng kg: 27
- Phụ kiện kèm theo máy:
+ hộp dầu đo lường
+ Bộ điều khiển
+ Dây nguồn
+ Cầu chì 5A
+ Thước đo tham chiếu
+ Hộp đựng
+ Bộ tham chiếu điện áp dùng để hiệu chuẩn YAI-80 (Optional)
+ HDSD
+ Chứng chỉ đo lường (Optional)
Oil tester OLT-80M is designed for determining the breakdown voltage of the transformer oil and other liquid dielectrics in accordance with IEC 60156 and other standards.
Both A and M series of OLT testers bring out accurate and repeatable results of measured breakdown voltage. Fast high-voltage switch off time makes it possible to carry out test of dielectric liquids, which are easily destroyed under such influences.
The internal design of OLT testers combined with a use of automatic high voltage breakers, cutting off supplied voltage if tester’s lid has been opened during the test, provide operator with high level of safety.
Testers are fully equipped and are ready for operation right after unpacking. They come with a test vessel (IEC 60156 – basic configuration) with VDE 0370 mushroom-shape electrodes. A gap between electrodes is easily regulated with a use of pass-no pass gauge, which comes in pack.
M-series provides operator with ultra-simplicity of operation. It doesn’t require any presets. All you need is pressing start button after a test vessel is loaded. Tester will show a breakdown voltage result immediately after breakdown occurs.
MAIN FEATURES:
- Compact and lightweight
- Precise voltage measurement
- Simple for operator
- Technical Specifications
Characteristic Value Output AC voltage (symmetrical), OLT-80/OLT-90/OLT-100, kV rms 80/90/100 Voltage resolution, kV 0.1 Measurement uncertainty, % of FS 3 Output voltage rise rate, kV/s 2 ± 0.2 Switch-off time on breakdown, μs < 5 Electrodes “mushroom” type IEC 60156 Test vessel IEC 60156, 400 ml, 1.0 kg Go/No-Go gauge width, mm 2.45 / 2.55 Display 3 × 7-segment digits Input voltage, V 230 ± 10% Line frequency, Hz 50 ± 1 Power consumption OLT-80/ OLT-90/OLT-100, VA 100/120/140 OLT-80 dimensions (W × H × D), mm 471 × 280 × 271 OLT-90 dimensions (W × H × D), mm 500 × 300 × 320 OLT-100 dimensions (W × H × D), mm 540 × 315 × 320 Net weight OLT-80/ OLT-90/OLT-100, kg 23/27/32 - Operating Conditions
The device is designed for an indoors operation under the following conditions:
Condition Value Air temperature, °С from +10 to +35 Relative humidity, %, up to 80 at +25° С Atmospheric pressure, kPa (mm hg) 84,0 – 106,7 (630 – 800) All persons involved in operating and maintenance of the device, must first be trained in safe working practices of the device.
- Package Contents
Component Quantity OLT oil tester 1 Test vessel* IEC 60156 with electrodes and cover 1 Go/No-Go gauge 1 Power cord (C-type plug.) 1 Grounding cable 1 Fuses (250V/3A) 2 C-80 (C-100) calibration kit Optional Documentation User's Manual 1 ISO/IEC 17025 calibration certificate (on Customer’s request) Optional * - Addititional test vessels are avaible on request
-
