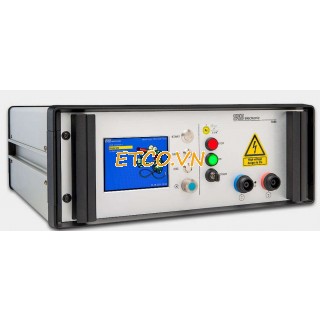

Thiết bị thử cao áp AC/DC SPS HA3881J, 5500VAC, 6000VDC 100mA, hiển thị TFT 5.7'' colour, (High voltage tester SPS HA3881J with 5.7'' colour TFT display - Hipot tester)
Hãng sản xuất: SPS Electronic
Model: HA3881J
Xuất xứ: Đức
Bảo hành: 12 tháng
Thông số kỹ thuật: Thiết bị thử cao áp AC/DC SPS HA3881J, 5500VAC, 6000VDC 100mA, hiển thị TFT 5.7'' colour, (High voltage tester SPS HA3881J with 5.7'' colour TFT display - Hipot tester)
Điện áp thử AC: 500-5500V
Dòng AC: 0-100mA
Điện áp thử DC: 500-6000V
Dòng DC: 0-50mA
Dòng ra: 0 - 100 mA
Thời gia tạo áp: 1-999s
Kích thước (HxWxD): 177 x 483 x 483 mm
Khối lượng: 24 kg
Nguồn cấp: 230 V / 50 Hz, option: 115 V / 60 Hz
High voltage tester AC/DC SPS HA3881J with 5.7'' colour TFT display - Hipot tester
Description
- High voltage tester with a fully electronic high voltage source up to 500 VA power.
- This performance and a short circuit current > 200 mA is required by global standards and is met by these devices.
- The in Europe required standards for work station safety at test stations of more than 1,000 V such as safety control panels and potential-free high voltage are also met.
- Thereby a global use in the test bay, in production and in the laboratory is possible.
High voltage test AC
- Voltage range: 500 up to 5,500 V
- Current range: 0 up to 100 mA
- Short circuit current: > 200 mA
High voltage test DC
- Voltage range: 500 up to 6,000 V
- Current range: 0 up to 50 mA
- Residual ripple: < 3 %
Insulation measurement DC
- Voltage range: 100 up to 6,000 V
- Current range: 250 kΩ up to 1.2 GΩ
- Residual ripple: < 3 %
Subjective tests
- Text step: subjective or informative
Operating modes
- Testing (t): Testing with time base up to 999 s
- Testing: Static testing
General data
- Safety power panel: Built-in
- Threshold values: All programmable
- Error message: Visual and audible
- Clock / calendar: Internal
- Ramp function: Programmable (IEC 601)
- Generator: Fully electronic, analogue technology
- Additional function: Programmable inputs and outputs
- Dimensions (HxWxD) and weight: 177 x 483 x 483 mm / ca. 24.0 kg
- Mains supply: 230 V / 50 Hz, option: 115 V / 60 Hz
Interfaces
- Computer interfaces: 2 x USB, RS 232, Ethernet / LAN
- Digital interface: 24 VDC 8 input + 8 output
- Analogue interfaces: 10 VDC 2 x input
Operation
- Rotary encoder for input: 5.7“-TFT colour display
