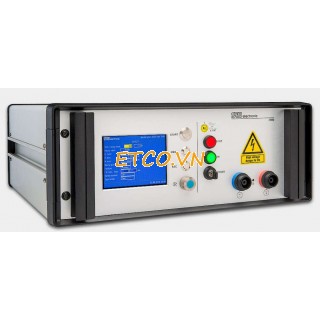

Thiết bị thử cao áp AC SPS HA3881G, 5500V, 100mA, hiển thị TFT 5.7'' colour, (High voltage tester SPS HA3881G with 5.7'' colour TFT display - Hipot tester)

Mã SP: HA3881G

Trạng thái: Còn hàng

Giá: 0 đ

Điểm nổi bật

Thiết bị thử cao áp AC SPS HA3881G, 5500V, 100mA, hiển thị TFT 5.7'' colour, (High voltage tester SPS HA3881G with 5.7'' colour TFT display - Hipot tester)
- 5500V, 100mA, hiển thị TFT 5.7'' colour

   Điện thoại đặt hàng: 04-6687-1848/0982-055-781
           Email: sale@etco.vn

Thiết bị thử cao áp AC SPS HA3881G, 5500V, 100mA, hiển thị TFT 5.7'' colour, (High voltage tester SPS HA3881G with 5.7'' colour TFT display - Hipot tester)

Hãng sản xuất: SPS Electronic
Model: HA3881G
Xuất xứ: Đức
Bảo hành: 12 tháng

Thông số kỹ thuật: Thiết bị thử cao áp AC SPS HA3881G, 5500V, 100mA, hiển thị TFT 5.7'' colour, (High voltage tester SPS HA3881G with 5.7'' colour TFT display - Hipot tester)

Dải điện áp thử: 500-5500V
Dòng ra: 0 - 100 mA
Thời gia tạo áp: 1-999s
Kích thước (HxWxD): 177 x 483 x 483 mm
Khối lượng: 23.5 kg

High voltage tester SPS HA3881G with 5.7'' colour TFT display - Hipot tester

Description

- High voltage tester with a fully electronic high voltage source up to 500 VA power.
- This performance and a short circuit current > 200 mA is required by global standards and is met by these devices.
- The in Europe required standards for work station safety at test stations of more than 1,000 V such as safety control panels and potential-free high voltage are also met.
- Thereby a global use in the test bay, in production and in the laboratory is possible.

High voltage test AC

- Voltage range: 500 up to 5,500 V
- Current range: 0 up to 100 mA
- Short circuit current: > 200 mA

Operating modes

- Testing (t): Testing with time base up to 999 s
- Testing: Static testing

Subjective tests

- Text step: Subjective or informative

General data

- Safety power panel: Built-in
- Threshold values: All programmable
- Error message: Visual and audible
- Clock/calendar: Internal
- Ramp function: Programmable (IEC 601)
- Generator: Fully electronic, analogue technology
- Additional function: Programmable inputs and outputs
- Dimensions (HxWxD) and weight 177 x 483 x 483 mm / ca. 23.5 kg
- Mains supply 230 V / 50 Hz, option: 115 V / 60 Hz

Interfaces

- Computer interfaces: 2 x USB, RS 232, Ethernet / LAN
- Digital interface: 24 VDC 8 input + 8 output
- Analogue interfaces: 10 VDC 2 x input

Operation

- Rotary encoder for input: 5.7“-TFT colour display
