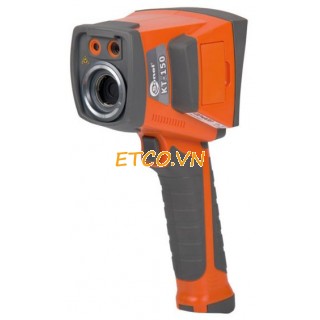

Camera đo nhiệt độ SONEL KT-150 (160 x 120 pixels,-20°C to 250°C)
Hãng sản xuất: Sonel
Xuất xứ: Balan-EU
Model: KT-150
Thông số kỹ thuật: Camera đo nhiệt độ SONEL KT-150 (160 x 120 pixels,-20°C to 250°C)
Thermal imager
Description
- A fully radiometric camera which records temperature at each point of the image
- Auto Focus (manual focus also available)
- Recording real image
- Recording in the extended jpg format (all data is included in the file but the image can be viewed as simple graphics)
- Infra Fusion technology viewing a combined real and infrared image for effective locating of the measurement place
- Simple and clear menu and programming in English and Spanish; easily navigable even for beginners
- Power supply: standard AA rechargeable cells or batteries, built-in charger
- Image refreshing rate: 50 times per second
- Vibration and shock resistant stable, sharp images without a tripod
- AGT diaphragm and lens cover in one (protection + elimination of influence of lens self-heating)
- 6 colour palettes available
- Built-in laser sight
- 3.6 LCD display
- Large memory capacity (built-in memory + standard replaceable SD card)
- Water and dust proof casing (IP54)
Specifications
| Technical specification KT-150 | |
| IR resolution | 160x120 |
| Temperature | -20..250°C |
| Temp. resolution | 0,1° |
| Spectral range | 8...14μm |
| Spatial resolution (mrad) | |
| FOV / focal length - standard lenses | 20,6° x 15,5° /11mm |
| FOV / focal length - optional lenses | no |
| Accuracy | ±2° or 2% |
| Min. distance (cm) | 20 |
| Laser | yes |
| Focus | auto/manual |
| Thermal sensitivity | 0.1°C @ 30°C |
| Palets | 6 |
| Refreshing (Hz) | 50/60 |
| Real image | CMOS Sensor, 1600x1200pixels(2Mpix) |
| InfraFusion | yes |
| IR video | SD |
| Modes (points) | centr, max, min |
| Emissivity regulation | 0,1..1 |
| Emissivity table | yes |
| Internal memory | 150MB |
| External memory | SD 2GB |
| Picture files format | JPG |
| Video files format | IRV |
| Voice note | no |
| PC interface | USB |
| Video output | no |
| Power from rechargeable batteries | standard AA |
| Power from disposable batteries | standard AA |
| Built-in charging | yes |
| Work with charger | 12V |
| Display | 3,6'' TFT LCD |
| Software | full, free (English, Polish, German, Spanish, Russian) |
| Working temp. | -10°C to 50°C |
| Storage temp. | -20°C to 60°C |
| Humidity | 10% to 95%, without condensation |
| Certificates | CE Mark (Europe) |
| Vibrations | 2G, IEC 68-2-6 |
| Shock | 25G, IEC 68-2-29 |
| Dimensions | 240mm x 124mm x 111mm |
| Weight (kg) | 0.73kg (with batteries) |
