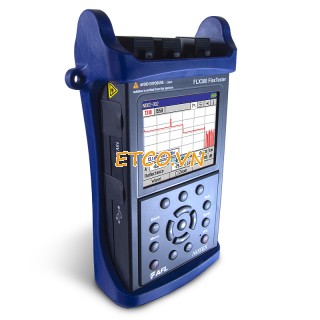

Máy đo OTDR cáp quang AFL FLX380
Máy đo quang otdr Noyes FLX380 là một trong những máy đo tốt nhất trên thế giới hiện nay, sở hữu cấu hình khủng nhất hiện nay, tích hợp cùng một lúc 04 chức năng trên một sản phẩm otdr, power meter, light source, visual fault locator. Máy đo otdr afl noyes FLX380 còn tích hợp khả năng đo live, đo PON, PON power...
Thông số kỹ thuật máy đo cáp quang:
- Standard OTDR, live PON OTDR, PON power meter – from one port!
- 41/38/38/37 dB dynamic range @ 1310/1490/1550/1625 nm
- 0.8/3.5 m event/attenuation dead zone, 40 m PON dead zone
- ServiceSafe™ live PON detection – prevents OTDR from disrupting service on live PON, while allowing 1625 nm out-of-band OTDR test
- OLS/OPM with Wave ID - Reduces test time by 80% and eliminates setup errors
- Rugged, hand-held and lightweight (<1 kg)
- High-contrast display: clear and bright, even in direct sunlight
- >12-hour continuous operation, fast charge, Li-Ion battery
- Instant On; Ready to test in <5 sec
- Easy to use Full Auto, Expert, PON and Real Time OTDR modes
Ứng dụng tiêu biểu máy đo otdr:
- Certify new FTTx PON or point-to-point fiber installations
- Troubleshoot live FTTx PONs including automatic live PON detection, PON power measurement and live PON OTDR test
- Complete multi-wavelength end-to-end loss tests faster and eliminate setup errors using AFL’s Wave ID
- Generate stable optical source signals (CW, Wave ID or tones)
- Visibly trace fibers or locate fiber bends or breaks using the integrated Visual Fault Locator (VFL)
