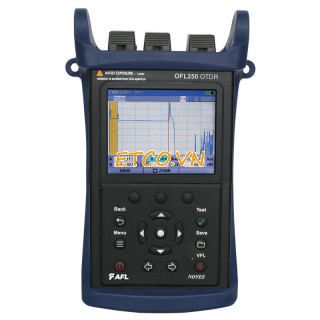

Máy đo OTDR cáp quang AFL OFL250-50
Máy đo otdr AFL Noyes OFL-250-50 là một máy đo với cấu hình đầy đủ chức năng: Otdr, power meter, light source, visual fault locator. Chức năng otdr và light source chỉ trên một bước sóng 1550nm.
Thông số kỹ thuật máy đo cáp quang:
- 26 dB dynamic range; can fault-locate fibers to > 100 km
- 1.5 m event dead zone; 7 m attenuation dead zone
- Standard features include OTDR, VFL and OPM/OLS with Wave ID
- Super simple user interface
- High-contrast display: Easily viewed in direct sunlight or dimly lit areas
- Handheld, rugged, lightweigh
Ứng dụng:
- Basic testing of core, metro, and dark FTTx fibers (1550 nm only)
- Fault-location of dark fibers
- Quick verification of splices and connections
- Optical power and loss measurement (1550 nm only)
- Fiber tracing and identification (tone generation / detection and VFL)
- OFL250-50 Handheld, Fault-Locating, 1550 nm OTDR
The NOYES OFL250-50 is a single-wavelength (1550 nm) OTDR suitable for fault-locating and basic testing of single-mode fibers in core, metro, and access networks. Standard features include:
- 1550 nm OTDR with 26 dB dynamic range
- Integrated Wave ID-compatible Optical Power Meter (OPM)
- Integrated 1550 nm Optical Light Source (OLS)
- Integrated Visual Fault Locator (VFL).
Purpose-built for outside plant fiber maintenance applications, the OFL250-50 offers:
- Handheld, rugged, and lightweight (0.8 kg / 1.7 lb) package
- Backlit, high-contrast display easily viewed indoors and in direct sunlight
- 12 hour operation from rechargeable, replaceable Li-Ion battery.
The OFL250-50 provides automatic and manual setup, precision event analysis, and USB connectivity.
OTDR test results may be saved as .SOR files, which can be transferred to a PC via USB cable for viewing, printing, and analysis using the supplied Windows® software.
Additional Features
- Tool-free, switchable adapters for OTDR and OPM ports
- Internal storage (>1000 OTDR traces in standard .SOR format)
- Transfer test results to a PC via USB
- Windows® compatible software to view, print, and archive OTDR traces
Additional Applications
- Locate cable cuts, open or high-loss splices, micro/macro bends, and high-loss or high-reflectance connections
- Measure optical power (OPM port)
- Short-range visible fault-location (VFL port)
- Trace fibers and measure end-to-end loss at 1550 nm (with a NOYES OPM or OLS)
- Identify fibers (with NOYES optical fiber identifier)
