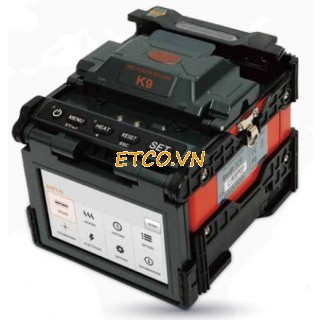

Máy hàn cáp quang Swift K9
Hãng: ILSINTECH
Model: Swift K9
Xuất xứ: Hàn Quốc
Bảo hành: 12 tháng
Thông số kỹ thuật: Máy hàn cáp quang Swift K9
- Fiber alignment: IPAAS core to core alignment(Image pattern analysis alignment system)
- Applicable type of fibers: 0.25mm, 0.9mm, 2.0mm, 3.0mm, 4.0, Indoor cable
- Fiber count: Single fiber
- Applicable fiber dimensions: Cladding diameter: 80~150㎛, Coating diameter: 100㎛~4mm
- Fiber setting and cleaved length: 7~16mm
- Splicing modes: Splice mode: 300, Heat mode: 100
- Typical splice Loss: SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB
- Return loss: > 60dB (Typical)
- Splicing time: Typical 6sec. (Quick Mode)
- Sleeve heating time: 9sec (IS-45 Sleeve, IS-45 mode), 13sec (IS-60 Sleeve, IS-60 mode)
- Applicable protection sleeve: 40mm, 60mm, 32mm or 28mm for SOC
- Storage of splice result: The last 3,000 results to be stored in the internal memory.(Image 3,000 results)
- Tension test: 1.96N ~ 2.25N
- Dimension: 143(W) x 163(L) x 140(H)mm (Without Bumper)
- Weight: With battery 2.2kg
- Viewing method and display: Two CMOS cameras and 5.0-inch color touch LCD
- Fiber view and magnification: X/Y : 200X, Max 400X
- Power supply: DC Lithium polymer battery (DC 14.8V, 4000mAh), 100~240V AC Adapter
- No. of splice cycles with battery: Typical 200 cycles
- Electrode life: More than 3,500 times
