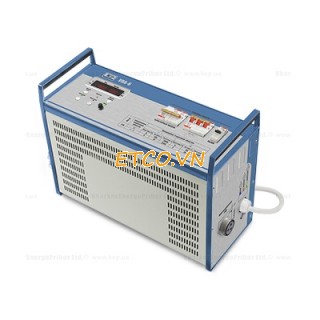

Máy thử nghiệm thiết bị đóng cắt tự động KEP UPA-6 (6kA)
Hãng sản xuất: KEP
Xuất xứ: Ukraine
Model: UPA-6
Thông số kỹ thuật: Máy thử nghiệm thiết bị đóng cắt tự động KEP UPA-6 (6kA)
Dùng để thử nghiệm và mô tả biểu độ đặc tính dòng điện (A)- thời gian (giây s) của các thiết bị đóng cắt dòng điện AC tự động: Máy cắt, áptomat..., Thiết bị có chức năng ghi lại giá trị của dòng điện và thời gian chuyển mạch của thiết bị đóng cắt
Điện áp cung cấp 1 pha AC, V: 220 ± 15
Tần số, Hz: 50 ± 1
Dòng điện ra max tại nguồn AC 220 V, kA: 6,4
Dải đo dòng điện thử, kA:1 ... 6
Dải đo dòng điện thử, A: 100 ... 999
Do thời gian thử dòng điện, s: 1 ... 7200
Do thời gian thử dòng điện, ms: 50 ... 990
Sai số đo lường, % max: 3
Thời gian hoạt động liên tục min tại dòng điện max, s: 30
Công suất tiêu thụ lớn nhất, kW: 33
Trọng lượng, kg, max ( chưa bao gồm thanh cái ): 47
Kích thước, mm, max: 535×358×200
Tuổi thọ trung bình 10 năm
Cung cấp bao gồm:
- Bộ điều khiển UPA-6 1 cái
- Cáp động lực mềm tiết diện 110 mm2 (dài 1 m) 8 cái
- Kết nối ngõ ra RNO
- HDSD
Automatic circuit breaker tester UPA-6 is designed for testing and ampere-second characterization of automatic AC current circuit breakers. The device allows registering the value of the supplied current and timing the automatic circuit breaker switching interval.
UPA-6 is a mobile device, which could be easily transported to a required testing location.
- Technical Specifications
Parameter Value Supply voltage single-phase AC current, V 220 ± 15 Frequency, Hz 50 ± 1 Maximum output current at AC 220 V, kA 6,4 Measurement range test current, kA 1 ... 6 Measurement range test current, A 100 ... 999 Test current supply time measurement range, s 1 ... 999 Test current supply time measurement range, ms 50 ... 990 Reduced error of the test current measurement, % max 3 Absolute error of the current flowing time and the switching off time measurement in the range from 50 ms to 990 ms, ms, max 20 Reduced error of the current flowing time and the switching off time measurement in the range from 1 s to 7200 s, %, max 3 Continuous running time under the maximum current, s, min 30 Highest power consumption, kW, max 33 Weight control unit, kg, max (no flexible busbars) 47 Overall dimensions, mm, max 535×358×200 Lifespan, years, avg 10 - Operating Conditions
The device is designed for an indoors operation under the following conditions:
Condition Value Air temperature, °С from -35 to +35 Relative humidity, %, up to 80 at +20° С Atmospheric pressure, kPa (mm hg) 84,0 – 106,7 (630 – 800) - Package Contents
Component Quantity UPA-6 control unit 1 Flexible busbar with cross-section 110 mm2 (length 1 m) 8 RNO connection outlet 1 RNO (Inom = 80 A) Optional* Cable for connecting RNO to UPA-6 Optional Documentation User's Manual 1 * Delivery terms of RNO are discussed separately.
