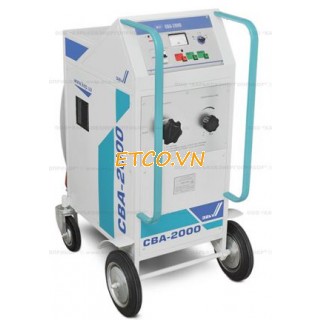

Máy phát sóng xung KEP SWG-2000
Hãng sản xuất: KEP
Xuất xứ: Ukraine
Model: SWG-2000
Tính năng: Máy phát sóng xung KEP SWG-2000
+ Máy phát sóng xung KEP SWG-2000 được thiết kế để định vị điểm lỗi cáp với điện trở chuyển tiếp R >= 500 sử dụng phương pháp âm thanh (acoustic method) kết hợp với bộ thu âm P-900 và phản xạ xung số RIF-7
+ Máy phát sóng xung KEP SWG-2000 là thiết bị di động
Thông số kỹ thuật: Máy phát sóng xung KEP SWG-2000
Surge wave generator SWG-2000 is designed for locating the faults in cable lines with transient resistance R >= 500 Ohm using an acoustic method in conjunction with an acoustic receiver P-900 and digital impulse reflectometer RIF-7.
Surge wave generator SWG-2000 is a mobile easily transportable device.
- Technical Specifications
Characteristic Value Сapacity of the capacitor, µF 4 х 15.0 Maximum output voltage by stages, kV 80 - first stage, kV 8 - second stage, kV 16 - third stage, kV 32 Maximum discharge pulse energy on any stage, J 1920 Operating modes: - manual Yes - automatic (with the discharge pulse intervals, s) Yes (0,5; 1; 2; 3; 5) Single-phase AC power supply voltage, V 220±22 Power supply frequency, Hz 50±2 Dimensions, mm 600х1500х900 Net weight, kg, max 150 - Operating Conditions
The device is designed for an indoors operation under the following conditions:
Condition Value Air temperature, °С from -10 to +40 Relative humidity, %, up to 80 at +20° С Atmospheric pressure, kPa (mm hg) 84,0 – 106,7 (630 – 800) Operating staff, min 2 SWG-1750 could be powered by a standalone power generator producing at least 2.0 kV*A power.
- Package Contents
Component Quantity High voltage acoustic unit SWG-2000 1 Control unit 1 High voltage unit 1 Power cable (length 10 m) 1 Grounding cable (length 10 m) 1 High voltage cable PVVE-60-3.5 (length 10 m) 1 Documentation User's Manual 1 - Warranty
The Manufacturer guarantees SWG-2000 conformity with the current technical documentation and the relevant Electrical and Safety codes and standards.
Limited Warranty period is 12 months from the date of shipment of the apparatus to the consumer.
